Brand: HPM

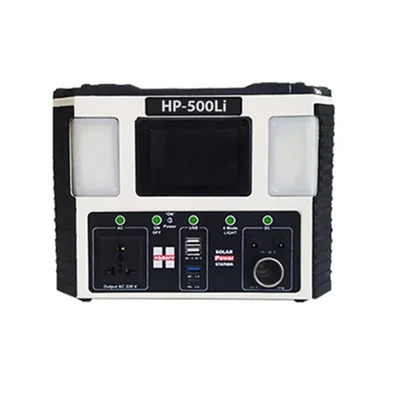

HPM 400VA Solar Inverter Power Station With In-built Lithium Battery (HP-500Li), 1 Year Warranty.
SKU: TI-H4-22507
Delivery By: Dec 12 - Dec 14
MRP : ₹42000 ₹27300
35% OFF!
Delivery By: Dec 12 - Dec 14 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹27300 (Including GST)
MRP : ₹42000
35% OFF!
Get Extra ₹410 OFF on Prepaid Orders
Short Description
HPM Portable Lithium Power Inverter Generator (HP-500Li)
Can be used by Solar Panel
400 VA Max. Output
1 Year Warranty
Country of origin: India
Specifications
- Brand: HPM
- Weight (Approx.) : 6.5 kg
- Model No. : HP-500Li
- Dimension : 275 x 220 x 190 mm
- Battery: Lithium Ion Phosphate LiFePo4
- Type : 32650 (Cylindrical), 3.2V, 6.5 AH
- Battery Voltage : 12.8 V (4S- 4P)
- Peak Capacity : 12.8V - 26AH (333 Wh)
- Single Cell Equivalent Capacity :104 Ah @ 3.2 V
- Life Cycles : ≥ 2000 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System) :Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
- Battery Expansion : Yes, Expandable, can Add 1 Pack 12.8V-70 Ah
- Shelf Life: Charge Every 3 - 6 Months
AC 230 Volt Output (Invertor Power Supply) :
- Continues Rated Power Output : 300 W
- Peak Output Power : 400 W
- Voltage & Type : AC-230V, 50Hz, Modified Sine Wave
- THD : NA
- Power Factor : 1 (Unity)
- Over Load : 116% < Load <150% @ 2min 150% < Load <200% @ 10 S
- Power Less (No Load & Turned- Off) : < 10W
- AC Output Back time @ 70% of rated load (VA) : ≥ 1Hours & 10 Minutes
- Max. Efficient (>70% Load) : 92%
- Output Socket : Indian Version AC Socket x 1
DC - Output- 12V- Cigarette Lighter Socket :
- Output Voltage : 12.8 ± 1 V
- Continuous Output Current : 12 A (Max. 150 Watt)
- DC Output Over Load Current Protection : Yes >13 A (Disconnected Load Recovery)
- DC Output Short Circuit Protection : Yes (Disconnect Load Recovery)
Other DC Outputs - 5V to 20 V & DC Ports :
- USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
- 12V DC -DC 5521 (2 Ports) : 2 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
- USB Output Fast Charging QC 3.0 : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
- Type - C USB : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A
- USB & DC Over Load Current Protection : Yes
- USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
- Illumination / LED Flash Lighting : 2 * 5W (4 Modes: Low, Bright, High Bright, Flash).
LCD - Display :
- Battery Level / Status : Battery Level Shows 10 Segment & Capacity in %
- Working Status : Remaining Working Hours time to Full (Recharging Hours)
- Output / Input Powers : Digital data according to real - time powered electricals *Ac ON/OFF, AC Output Power (W) *DC ON/OFF,DC Output power (W)*DC Charging Input Power (W)
- Button, Ports, Multifunction : Display For all Active Ports, Fan, Over Temp. Overload, Backlight, Battery Failure Alarm, Display Error Codes, Last Charging date
- Heat Dissipation : Air Cooling (Fan), Aluminium Housing
- IP Rate : IP 32 Protected from Water Spray < 15˚From Vertical
DC - Charging Input Power (3 Way of Recharge) :
- AC Wall Charger (Charging From Grid Power) (AC input 120V to 275V): AC - DC Adapter (CC/CV) - 8mm Port 15V - 3A (50 Watt Max.) Charging Time 9 -10 Hours
- Solar Panel PV Charge : Folding Type 18V / 4.5 Amps - Max 80 W (40 + 40 Watt) Charging Time 6 - 7 Hours
- Car Charge Input (From Cigarette Socket) : 12 - 14V, 10 Amps Max. Charging Time <3 Hours
Working Condition :
- Charge Temperature : 0˚C ~ 45˚C
- Operating Usage Temp. : -10˚C ~ 45˚C
- Operation Storage Humidity : 5% ~ 90%
Description
This is a portable multi-functional power source AC -230V & DC 5V-20V, that can store energy with its Lithium-Iron-Phosphate battery pack and can power many kind of electric devices simultaneously by its various output Sockets, such as AC-230 V socket, A type USB (2 Nos.), USB QC 3.0, Type ‘C’ USB, 12V DC socket 5521 (2Nos.), 150 Watt CG port. It is widely used for outdoor working, Camping or any emergency Situation that needs electrical supply but without utility / (Grid) Power. Solar power charging functions make it a “Ready to Use” Best power partner for off-Grid-Living.
Accessories
:- 1* AC/DC Wall Charger Adapter (50W)
- 1* Car Charger (Cigarette Lighter) Cable
- 1* User Manual
Note : 1 Year Warranty On Complete Product.
Applications
:Drone, Smartphone Tablet, Laptop, Car, Air Compressor, Mini Fridge, Car Fridge, Led Light, Flood Light, Wi-Fi - Router, Vacuum Cleaner, Projector, Coffee Maker, Blender, Cordless Drill etc. can run on this Solar Inverter.
