Brand: Surya

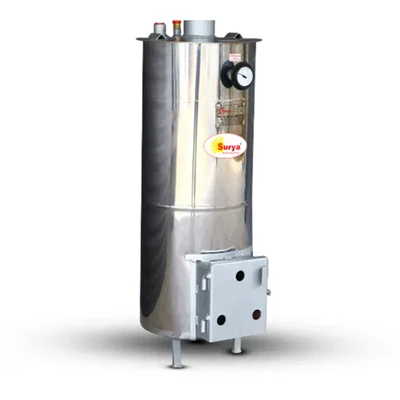

Surya 40L Compact Mirror Finish Glass Wool Insulated Biomass Wood Fired Hot Water Boiler 40L
SKU: TI-S4-68249
Estimated Delivery By: Apr 15 - Apr 17
MRP : ₹21059 ₹16199
23% OFF!
Estimated Delivery By: Apr 15 - Apr 17 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹16199 (Including GST)
MRP : ₹21059
23% OFF!
Get Extra ₹243 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Surya 40L is a non-electric, biomass-fired hot water boiler made from JSW/Jindal steel with 50mm glass wool insulation. It heats water in 15 minutes for 4 people, making it the most cost-effective solution for small families.
Country of origin: India
Specifications
- Brand: Surya
- Model: 40L
- Capacity: 40 Liters
- Automation Grade: Semi-Automatic
- Heater Type: Vertical Tubular Heater
- Surface Finish: Mirror Polish
- Color: Silver Ash
- Operating Temperature: 60°C
- Working Pressure: 7.5 Kgs/cm² (Max endurance 10 Kgs/cm²)
- Fuel Consumption: 1kg (at maximum load)
- Inner Tank Thickness: 4mm & 5mm
- Outer Tank Thickness: 3mm
- Total Weight: 45 kg (without water)
- Dimensions: 14-inch Diameter x 3-feet Height
- Inlet/Outlet Size: 3/4 Inch Coupling
- Drainage/Temperature Port: 1/2 Inch
- Safety Valve Size: 1/4 Inch
- Firing Area Volume: 280 cubic inches
- Space Required: 1.5 x 1.5 Feet
- Exhaust Pipe: 8ft Height x 3-inch Diameter
- Capacity Per Cycle: Suitable for 4 Persons
- Mixing Ratio: 1L Hot Water (60°C) mixes with 2L Cold Water
- Mounting Type: Foot Mount
Description
A highly effective and environmentally friendly residential water heating option, the Surya 40L Wood Fired Hot Water Boiler produces blazing hot water at almost no running costs. This boiler has a contemporary vertical tubular design and 50mm high-density glass wool insulation for optimal heat retention. It is built utilizing superior JSW and Jindal hot roll plates. It is a completely safe, non-electric substitute for geysers since it runs solely on biomass fuels like wood pellets, charcoal, and agricultural waste. It provides enough hot water for up to four people in a single heating cycle, and its small size and mirror-polished stainless steel finish make it an attractive and useful addition to any house.
Features
:- Extremely Quick Heating: only takes only 15 minutes to reach 60°C, and only takes 10 minutes to get hot water.
- Superior Insulation: Up to eight hours of heat retention are guaranteed by the 50mm glass wool insulation.
- High Durability: For ultimate safety, tested at 7.5 kg air pressure and able to withstand up to 10 kg/cm².
- Hard Water Friendly: Designed to function consistently in regions where the water contains a lot of salt or minerals.
- Multi-Floor Support: Offers hot water to several storeys without the need for electricity (EB).
- Eco-Friendly: Solves domestic trash disposal issues and uses sustainable biomass to lessen carbon impact.
- Rust Protection: For a potential 15-year lifespan, the internal tank has a specific rust-proof coating.
Applications
:- Domestic Households: Perfect for households with three to four people.
- Schools and hostels are examples of small educational units.
- Healthcare: Nursing homes or small clinics.
- Small-scale dairy and poultry farms are examples of agro-business.
- Small hotels or guest houses are examples of hospitality.
Usage
:- Use charcoal, wood pellets, or dry wood waste as fuel. Fuel costs are zero when household waste is used.
- Installing a non-return valve (NRV) is not recommended for plumbing safety. Avoid using plastic piping at the boiler interface and make sure all connections are leak-free.
- Ash Disposal: To guarantee effective combustion, clean the casting fire bar on a regular basis and empty the gray drawer.
- Exhaust Maintenance: To sustain heating speed, clean the 8-foot exhaust pipe on a regular basis to get rid of dust and soot buildup.
- External Maintenance: Make sure the boiler is dry. Shampoos, soaps, and plastics should not be placed on top of the boiler since the surface produces heat.
- Tank hygiene: Flush the tank right away to revitalize the system if the water smells "off," which is a sign of bacterial growth.
