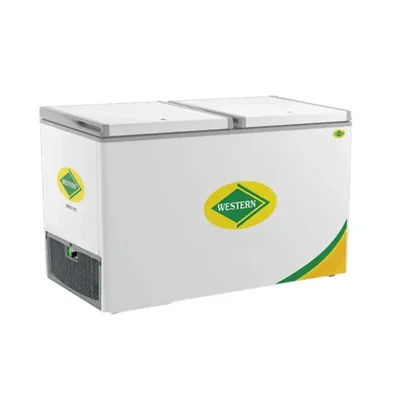

WESTERN D475H224 Double Door 444L Hard Top Chest/Deep Freezer for Ice Cream, Instant Food and Other Beverages

• Model: D475H224
• Capacity: 444 Liters
• Net Volume: 402 Liters
• External Dimensions (W x D x H): 1360 mm x 695 mm x 880 mm (136.0 x 69.5 x 88.0 cm)
• Number of Doors: 2 (Top Open)
• Number of Baskets: 2
• Insulation: 60mm Polyurethane
• Temperature Range: Freezer: < –17.0°C; Cooler: < 10.0°C
• Power Supply: 230V/50Hz/1Ph
• Defrost Type: Manual Defrost
• Body Material: Pre-painted galvanized steel sheet
• Cooling Type: Static Cooling

Features

• Convertible Technology (Freezer & Cooler)
• Double Door Design
• 60mm Polyurethane Insulation
• Durable Hard Top Lid
• Two Storage Baskets
• Castor Wheels
• Lock and Key
• Temperature Locking System
• High Ambient Operation Capability
• Quiet Operation

Applications

Usage

1. Placement: Level, stable, well-ventilated area, away from heat/direct sun. Allow 15 cm clearance.
2. Initial Setup: Let stand upright 2-4 hours before plugging in.
3. Power On: Plug into dedicated, grounded outlet.
4. Temperature Setting: Set thermostat for desired mode; let stabilize before loading.
5. Loading: Arrange items for air circulation; use baskets. Do not overload.
6. Convertible Mode: Adjust thermostat to switch between freezer/cooler.

Maintenance:

• Defrosting: Manual defrost when 6mm frost builds. Unplug, remove contents, melt ice naturally (no metal tools/hot water).
• Cleaning: Regularly clean interior (mild soap/water) and exterior (damp cloth).
• Condenser Coils: Periodically clean (vacuum/brush) dust/debris.
• Door Gaskets: Inspect and clean for airtight seal.
• Ventilation: Ensure grilles are unobstructed.

Precautionary Guidance:

• Electrical Safety: Use grounded outlet only; no damaged cords.
• Flammable Materials: Do not store.
• Hot Food: Cool to room temperature before freezing.
• Overloading: Avoid restricting airflow.
• Child Safety: Keep children away; prevent entrapment.
• Moving: Empty unit; allow to stand if tilted before restarting.
• Repairs: Only authorized technicians.
• Defrosting Tools: Use only plastic scrapers.
