Brand: TURTLE

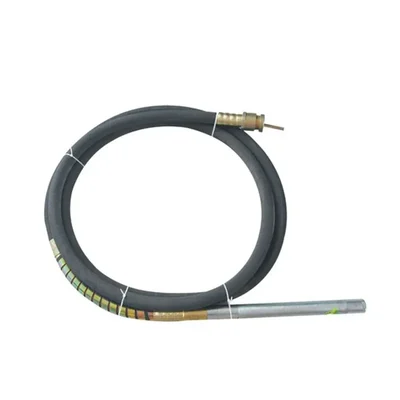

Turtle 45 mm Concrete Vibrator Shaft Needle 6 M Length Professional Concrete Compaction Tool
SKU: TI-TG-52658
Delivery By: Dec 19 - Dec 21
MRP : ₹7500 ₹6075
19% OFF!
Delivery By: Dec 19 - Dec 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹6075 (Including GST)
MRP : ₹7500
19% OFF!
Get Extra ₹91 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Turtle 45 mm Concrete Vibrator Shaft Needle
6 M Length Professional Concrete Compaction Tool
Country of origin: China
Specifications
- Brand: TURTLE
- Weight (Approx.) : 13 kg
- Net Quantity : 1 pc
- Needle Diameter : 45 mm
- Length : 6M
- Type : Flexible Shaft Concrete Vibrator Needle
- Material : High Grade Steel/Rubber
Description
Achieve superior concrete quality and eliminate voids with the Turtle 45 mm Flexible Shaft Vibrator Needle. The long 6-meter shaft is perfect for deep pours, large slabs, and hard-to-reach areas. It ensures maximum concrete density and strength for all professional construction applications.
Features
:- Extra Long Reach : 6-meter length is ideal for deep footings and large area compaction.
- Optimal Density : 45mm diameter needle effectively removes air bubbles and voids from concrete.
- High Flexibility : Durable, flexible shaft allows easy maneuvering within complex formwork.
- Quick Connection : Designed for easy and secure attachment to compatible power units.
Applications
:- Compacting deep foundations, large industrial slabs, and tall columns.
- Densifying concrete in large civil engineering and infrastructure projects.
- Removing entrapped air from beams and precast elements where extended reach is needed.
- Professional construction and commercial concrete work.
Usage
:User Instructions :
- Secure Connection : Attach the flexible shaft securely to the power unit (motor/engine).
- Immersion : Switch on the motor and slowly insert the needle vertically into the wet concrete, ensuring it penetrates deep into the pour.
- Withdrawal : Allow the needle to vibrate until air bubbles stop rising (typically 5 to 15 seconds). Slowly withdraw the needle at a rate of approximately 1 inch per second.
- Overlap : Reinsert the needle, overlapping the previous compaction radius to ensure uniform density throughout the pour.
Maintenance :
- Cleaning : Immediately after use, clean the vibrator needle head with water to remove all concrete residue before it hardens.
- Shaft Inspection : Regularly check the flexible outer sheath for cracks or damage, especially along the 6-meter length. Replace the shaft if the protective covering is compromised.
- Lubrication : Consult the motor unit manual for any specific lubrication requirements for the connecting end of the flexible shaft.
- Storage : Store the 6M shaft coiled loosely and hung, or laid flat in a dry, covered area to prevent kinking or damage to the internal wire core.
