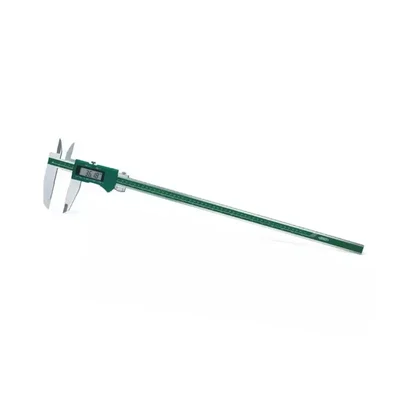

Insize 609.6 mm Digital Caliper 1135-601 Model, 45 mm Upper Jaw Length

• Model No : 1135-601
• Measurement Range : 0 - 609.6 mm
• Resolution : 0.01 mm
• Measurement Range : 0-24 Inch
• Upper Jaw Length : 45 mm
• Resolution : 0.0005 Inch
• Material : Stainless Steel
• Power Supply : Battery CR2032
• Overall Length : 770 mm
• Display : LCD
• Accuracy : ±0.05 mm
• Lower Jaw Length : 100 mm

Features

• Extended Measuring Reach: The 100 mm lower jaw depth allows for measurements that standard calipers cannot handle, reaching deep into or over workpieces to capture thicknesses at the center.
• Material: Constructed from Hardened Stainless Steel, ensuring the beam remains rigid and does not "flex" or "bow" even when fully extended to 24 inches.
• Button function: on/off, zero, mm/inch, ABS, data preset.

Applications

• Heavy Engineering: Measuring the outside diameter of large-scale industrial pipes, valves, and mechanical housings.
• Large Casting Inspection: Used in foundries to check the dimensions of bulky raw castings where deep-reach jaws are necessary to bypass irregular surfaces.
• Quality Assurance (QA): Ideal for digital data logging in QC departments using the data output port to record dimensions of large structural components
• Aerospace & Marine: Measuring large-scale airframe brackets, wing ribs, or ship engine components.
