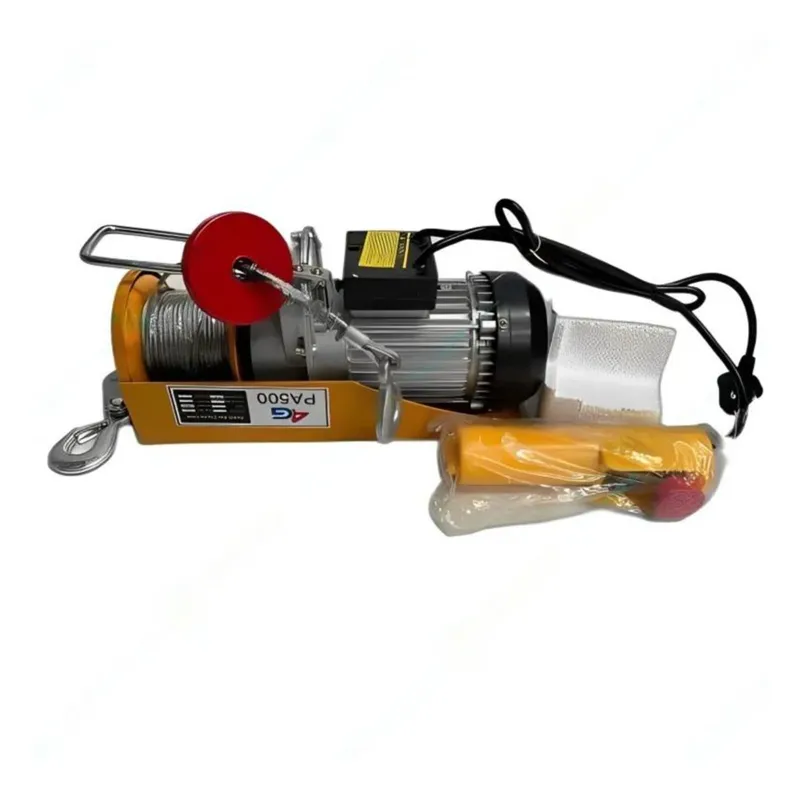

4G PA 500 kg 1020W Mini Electric Hoist, 4 mm diameter & 20 meter long Wire Rope
SKU : TI-4P-16050
MRP : ₹15000
₹8250
45% OFF!
-
1
+
554 people have viewed this recently
Get Extra ₹124 OFF on Prepaid Orders
Delivery By: Jul 4 - Jul 6
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
4G 500 kg Mini Electric Hoist
Rated Voltage 220V, 50Hz
Rated Capacity 500 Kg
20 meter Wire rope length, 4 mm diameter
Remote Controlled Electric hoist
Country of origin: China
Specification
Description
4G PA 500 kg 1020W Mini Electric Hoist, 4 mm diameter & 20 meter long Wire Rope

Description :
  • The raising, lowering, and transferring of objects and goods is done with the use of material handling equipment called electric hoists. They are mounted above the ground, and an electric motor drives them. Electric wire rope and chain hoists are the two primary varieties of electric hoists.
  • Mini Electric Hoist 250/500kg with Double Hook is capable of lifting 500kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.

Features :
  • With an emergency stop switch
  • Reinforced breaking switch with position limit
  • Protection class up to IP40
  • With a thermal prevention device
  • Compact and small size design
  • Long life span and high efficiency
  • Applicable for most industry, business, handicraft industry and service industry
  • Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specifications :
  • Model No. : PA-500
  • Product Type : Mini Electric Hoist
  • Brand : 4G
  • Phase : Single Phase
  • Trolley Option : Without Trolley
  • Winding : Copper Winding
  • Power Source : Electric
  • Working : Remote Controlled
  • Frequency : 50 Hz
  • Method Of Use : Single & Double Hook
  • Single Hook Load Capacity : 250 kg
  • Double Hook Load Capacity : 500 kg
  • Rated Voltage : 110/220 V
  • Rate Lifting : 150 to 300 Kg
  • IP Rating : IP40
  • Wire Rope Diameter : 4 mm
  • Wire Rope Length : 20 mtr. (2000 cm)
  • Input Power : 1020 W
  • Lifting Speed : 8/4 m/min
  • Lifting Height : 15/20 m (1500/2000 cm)
  • Work Rate : 20% 10 min
  • Motor Speed : 2800 RPM
  • Body Material : Cast Iron
  • Usage/Application : Industrial

Application :
  • Warehouses, automotive servicing, machine shops, manufacturing facilities, factories, building sites, and railroad construction.

In The Box :
  • 1 Electric Hoist.
  • 1 Electric Hoist Remote.
  • 1 Eye Hook.
  • 1 Pulley Hook
  • 20-meter Wire Rope.
  • Mounting Case
  • Nutbolts and Clamps

Note :
  • All these accessories are assembled with the machine.
