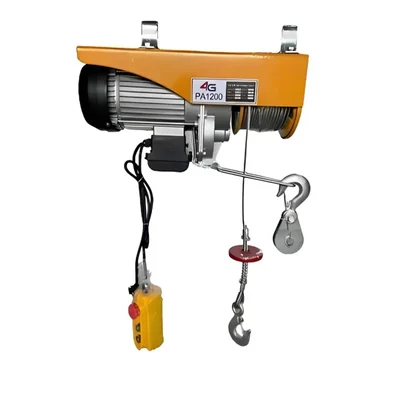

4G 1200 kg 1800W Mini Electric Hoist With 2.5 HP Copper Winding Motor, 8 mm diameter & 20 meter long Wire Rope (PA-1200)

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Mini Electric Hoist 900/1800 kg with Double Hook is capable of lifting 1800 kg of weight with the aid of double hook.

4G 1200 kg Mini Electric Hoist

Rated Voltage 220V, 50Hz

Rated Capacity 1200 Kg

20 meter Wire rope length, 8 mm diameter

Remote Controlled Electric hoist

Country of origin: China

Description

4G 1200 kg 1800W Mini Electric Hoist With 2.5 HP Copper Winding Motor, 8 mm diameter & 20 meter long Wire Rope (PA-1200)

Description :

• The raising, lowering, and transferring of objects and goods is done with the use of material handling equipment called electric hoists. They are mounted above the ground, and an electric motor drives them. Electric wire rope and chain hoists are the two primary varieties of electric hoists.
• Mini Electric Hoist 900/1800 kg with Double Hook is capable of lifting 1800 kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.


Features :

• With an emergency stop switch
• Reinforced breaking switch with position limit
• Protection class up to IP40
• With a thermal prevention device
• Compact and small size design

• Long life span and high efficiency
• Applicable for most industry, business, handicraft industry and service industry
• Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specifications :

• Model No. : PA-1200
• Product Type : Mini Electric Hoist
• Brand : 4G
• Phase : Single Phase
• Power Source : Electric
• Trolley Option : Without Trolley
• Winding : Copper Winding
• Working : Remote Controlled
• Motor Power : 2.5 Hp
• Frequency : 50 Hz
• Rated Voltage : 220 V
• Method Of Use : Single & Double Hook
• Single Hook Load Capacity : 600 kg
• Double Hook Load Capacity : 1200 kg
• IP Rating : IP40
• Wire Rope Diameter : 8 mm
• Wire Rope Length : 20 meter
• Input Power : 1800 W
• Lifting Speed : 10/12 m/min
• Lifting Height : 10/20 m
• Work Rate : 20% 10 min
• Body Material : Cast Iron
• Usage/Application : Industrial

Application :

• Warehouses, automotive servicing, machine shops, manufacturing facilities, factories, building sites, and railroad construction.

In The Box :

• 1 Electric Hoist.
• 1 Electric Hoist Remote.
• 1 Eye Hook.
• 1 Pulley Hook.
• 20-meter Wire Rope.
• Mounting Case
• Nutbolts and Clamps

Note :

• All these accessories are assembled with the machine.
• The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.

Specifications

 :

• Brand: 4G
• Power : 2.5 hp
• Weight (Approx.) : 31.5 kg
