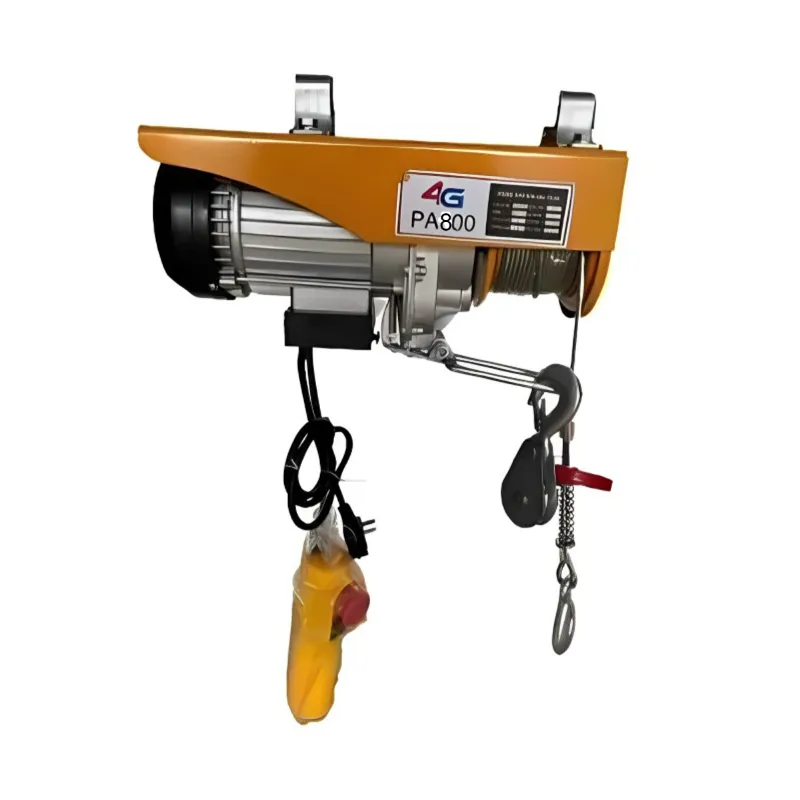

4G 800 kg Mini Electric Hoist with 1.75 HP Copper Winding Motor, 5 mm diameter & 30 meter long Wire Rope (PA-800)
SKU : TI-45-12149
MRP : ₹15000
₹10080
33% OFF!
-
1
+
6 people have bought this recently
Get Extra ₹151 OFF on Prepaid Orders
Delivery By: Jun 22 - Jun 24
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
4G 800 kg Mini Electric Hoist
Rated Voltage 220V, 50Hz
Rated Capacity 800 Kg
30 meter Wire rope length, 5 mm diameter
Remote Controlled Electric hoist
Country of origin: China
Specification
Description
4G 800 kg Mini Electric Hoist with 1.75 HP Copper Winding Motor, 5 mm diameter & 30 meter long Wire Rope (PA-800)

Description :
  • The raising, lowering, and transferring of objects and goods is done with the use of material handling equipment called electric hoists. They are mounted above the ground, and an electric motor drives them. Electric wire rope and chain hoists are the two primary varieties of electric hoists.
  • Mini Electric Hoist 400/800kg with Double Hook is capable of lifting 800kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.

Features :
  • With an emergency stop switch
  • Reinforced breaking switch with position limit
  • Protection class up to IP40
  • With a thermal prevention device
  • Compact and small size design
  • Long life span and high efficiency
  • Applicable for most industry, business, handicraft industry and service industry
  • Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specifications :
  • Model No. : PA-800
  • Product Type : Mini Electric Hoist
  • Brand : 4G
  • Winding : Copper Winding
  • Trolley Option : Without Trolley
  • Phase : Single Phase
  • Power Source : Electric
  • Working : Remote Controlled
  • Voltage : 220 V
  • Frequency : 50 Hz
  • Motor Power :  1.75 HP
  • Capacity : 800 kg
  • Method Of Use : Single & Double Hook
  • Single Hook Load Capacity : 400 kg
  • Double Hook Load Capacity : 800 kg
  • Wire Rope Diameter : 5 mm
  • Wire Rope Length : 30 mtr (3000 cm)
  • Maximum Lifting Height : 30 m (3000 cm)
  • Supply Ability : 200 Unit Per Month
  • IP Rating : IP40
  • Input Power : 1300 W
  • Lifting Speed : 8/4 m/min
  • Lifting Height : 15/30 m (1500/3000 cm)
  • Work Rate : 20% 10 min
  • Body Material : Cast Iron
  • Usage/Application : Industrial
Application :
  • Warehouses, automotive servicing, machine shops, manufacturing facilities, factories, building sites, and railroad construction.

In The Box :
  • 1 Electric Hoist.
  • 1 Electric Hoist Remote.
  • 1 Eye Hook.
  • 1 Pulley Hook.
  • 30-meter Wire Rope.
  • Mounting Case
  • Nutbolts and Clamps

Note :
  • All these accessories are assembled with the machine.
  • The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.
