Brand : Crompton

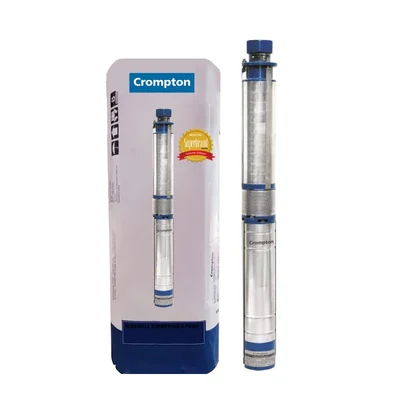

Crompton 1.5 HP 10 Stage 4 inch Water Filled Borewell Submersible Pump With 1 Year Warranty (4W10B1.5J-VX)
SKU : DC-CM-20220466
MRP : ₹18200
₹16790
8% OFF!
-
1
+
2450 people have viewed this recently
Get Extra ₹252 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Crompton 1.5 Hp 1Ph Borewell Submersible Pump
67m Max. Head
100 LPM Max. Discharge
V4 Type(100 mm) Borewell Size
1 Year Warranty
Country of origin: India
Specification
Description
Crompton 1.5 HP 10 Stage 4 inch Water Filled Borewell Submersible Pump With 1 Year Warranty (4W10B1.5J-VX)

Description :
  • A submersible pump is a device which has a hermetically sealed motor close-coupled to the pump body. Electric submersible pumps are multistage centrifugal pumps operating in a vertical position. Liquids, accelerated by the impeller, lose their kinetic energy in the diffuser, where a conversion of kinetic to pressure energy takes place. This is the main operational mechanism of radial and mixed flow pumps. Multiple stage borewell submersible pumps are typically lowered down a borehole, and most typically used for residential, commercial, municipal and industrial water extraction

Features :
  • Can withstand back pressure without  damage
  • Built-in valve manages sudden back pressure avoiding damage
  • Strong and robust mechanical design

Specifications :
  • Model No. : 4W10B1.5J-VX
  • Product Type : Borewell Submersible Pump Set
  • Brand : Crompton
  • Power Supply : Electric, AC Supply
  • Wattage : 1.1 kW
  • Electricity Connection : Single Phase
  • No. of Stages : 10
  • Borewell Size : 4 inch (100 mm) (V4)
  • Motor Cooling Type : Water Filled
  • Head Range : 88 to 220 Feet (27-67 Meters)
  • Discharge Rate : 100-20 LPM (6000 to 1200 LPH)
  • Delivery Size : 40 mm
  • Winding Material : Copper

Suitable For :
  • 4 inch (100 mm) Borewell.

Material Of Construction :
  • Diffuser : Noryl
  • Impeller : Noryl/Delrin
  • Pump Shaft : Stainless Steel-SS410
  • NRV Body : Cast Iron-Grade FG 200
  • Motor Body : Stainless Steel-SS202/SS304
  • Pump Jacket : Cast Iron-Grade FG 200
  • Upper Housing, Motor Base : Stainless Steel-SS202
  • Bush : Bronze LTB-4
  • Motor Shaft : Stainless Steel-SS420
  • Stamping : CRNGO-M47
  • Thrust Bearing : SS Vs Zytel / SS Vs Carbon
  • Strainer : Stainless Steel-SS202
  • Fastener : Stainless Steel-SS410
  • Sealing : Oil seal

Applications :
  • Gardening
  • Sprinkler irrigation
  • Multistoried buildings water supply
  • Water supply for domestic and industrial application
  • Drip irrigation
  • Construction site

Warranty :
  • 1 year warranty on manufacturing defects only.
