Brand : Crompton

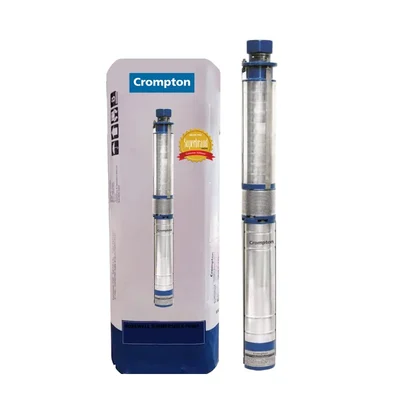

Crompton 2 HP 8 Stage 4 inch Water Filled Borewell Submersible Pump with 1 Year Warranty (4W8RA2C(I)-50)
SKU : DC-CM-20220438
MRP : ₹25000
₹20680
17% OFF!
-
1
+
3289 people have viewed this recently
Get Extra ₹310 OFF on Prepaid Orders
Delivery By: Aug 31 - Sep 2
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
4 inch (100 mm) Borewell Submersible Pump,
2 HP (1.5 kW) & Water Filled Motor
150 to 10 LPM Discharge Range
1 Year Warranty
Country of origin: India
Specification
  • Brand: Crompton
  • Power : 2 hp
  • Weight (Approx.) : 15 kg
  • Flow Rate : 150 lpm
  • Head : 50 meter
  • Model No. : 4W8RA2C(I)-50
  • Product Type : Borewell Submersible Pump
  • Wattage : 1.5 kW
  • Electricity Connection : Double Phase
  • Motor Cooling Type : Water Filled
  • No. of Stage : 8
  • Head Range : 25-50 meters (82 - 164 feet)
  • Outlet Size : 50 mm
  • Discharge Range : 150-10 LPM (9000 to 60 LPH)
  • Winding Material : Copper

Suitable For :
  • 4 inch (100 mm) Boring

Material Of Construction :
  • Diffuser : Noryl
  • Impeller : Noryl/Delrin
  • Pump Shaft : Stainless Steel-SS410
  • NRV Body : Cast Iron-Grade FG 200
  • Motor Body : Stainless Steel-SS202/SS304
  • Pump Jacket : Cast Iron-Grade FG 200
  • Upper Housing, Motor Base : Stainless Steel-SS202
  • Bush : Bronze LTB-4
  • Motor Shaft : Stainless Steel-SS420
  • Stamping : CRNGO-M47
  • Thrust Bearing : SS Vs Zytel / SS Vs Carbon
  • Strainer : Stainless Steel-SS202
  • Fastener : Stainless Steel-SS410
  • Sealing : Oil seal
Description
A submersible pump is a device which has a hermetically sealed motor close-coupled to the pump body. Electric submersible pumps are multistage centrifugal pumps operating in a vertical position. Liquids, accelerated by the impeller, lose their kinetic energy in the diffuser, where a conversion of kinetic to pressure energy takes place. This is the main operational mechanism of radial and mixed flow pumps. Multiple stage borewell submersible pumps are typically lowered down a borehole, and most typically used for residential, commercial, municipal and industrial water extraction

Features

 :
  • High Grade Electrical Stamping : Reduces electrical losses and improves pump efficiency.
  • High Thrust Capacity : Specially designed thrust bearing ensures highest reliability.
  • In Built Check Valve : In built check valve prevents pump parts from damage due to sudden back pressure.
  • High Quality Noryl : High quality virgin noryl components give longer life.
  • Easy for Maintenance : Simple construction, easily replaceable wear and tear parts.

Applications

 :
  • Domestic water supply, Small farms, agriculture
  • Hotels, Buildings, Apartments, Hospitals ,Gardening
  • Public water supply schemes & Lift Irrigation Schemes
  • Drip and Sprinkler Irrigation Schemes
  • Booster application
  • Circulation, Ornamental fountain installation & Air- conditioning plants etc.

Warranty :
  • 1 year warranty.
