Brand : Kirloskar

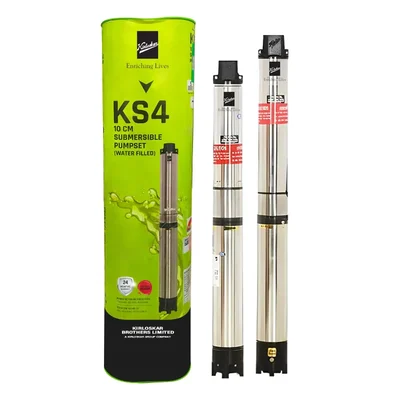

Kirloskar 5HP 12 Stage 100mm(4") 3Phase Water Filled Borewell Submersible Pump, 210ft Head - 2 Year Warranty (KS4H-5012)
SKU : TI-K5-19149
MRP : ₹58800
₹37199
37% OFF!
-
1
+
8913 people have viewed this recently
Get Extra ₹558 OFF on Prepaid Orders
Delivery By: Nov 9 - Nov 11
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KS4H-5012) 5 HP Submersible Pump
420LPM Max. Discharge Rate
64M Max. Head Range
10Cm (4 inch) Boring Size
2 Year Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 5 hp
  • Weight (Approx.) : 41 kg
  • Flow Rate : 420 lpm
  • Head : 64 meter
  • Model No. : KS4H-5012
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • Wattage : 3.7 kW
  • No. of Stages : 12
  • Power Supply : 415V, 50 Hz, AC Supply
  • Electricity Connection : Three Phase
  • Cooling Type : Water Filled
  • Outlet Size : 65 mm
  • Current Rating : 10.6 Amp
  • Boring Size : 100mm (4 inch)
  • Max. Head : 64 Meter (210 Feet)
  • Max. Discharge Rate : 420 LPM (25200 LPH)
  • Insulation : B Class
  • Protection : IP 68
  • Winding Materia : Copper

Material Of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Thrust Bearing : Carbon + Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron
Description
Submersible pumps like the Kirloskar KS4 series have gained widespread popularity due to their numerous advantages over conventional above-ground pumps. By positioning the motor below the water level, these pumps eliminate the need for priming – a time-consuming process that involves filling the pump chamber with water before starting operation. Moreover, submersible pumps offer improved cooling efficiency compared to their above-ground counterparts. In this case, Kirloskar’s KS4 series pumps are equipped with water cooling systems that circulate water around the motor windings to dissipate heat generated during operation.

Features

 :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 280 to 440 volts and reduces motor burning in low voltage
  • High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained
  • Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
  • Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
  • CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

Applications

 :
  • Domestic and community water supply
  • Rural water supply
  • Gardening and small farm irrigation
  • Construction site
  • Water supplies for high rise building

WARRANTY :
  • 2 Year Warranty as per Kirloskar Brothers Limited Policy.
