Brand: HPM

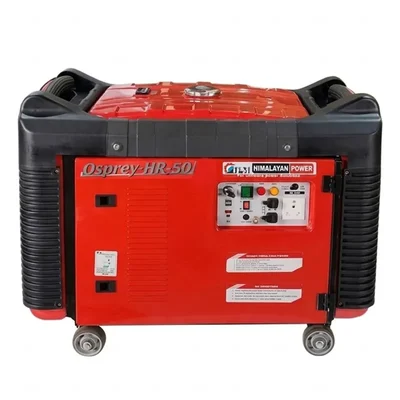

HPM 5 KVA 5000VA Dual Fuel Petrol LPG Digital Inverter Generator Self Start Pure Sine Wave Genset Osprey HP-50is
SKU: DK-HP-2088
26 people have bought this recently
Estimated Delivery By: Sep 19 - Sep 21
MRP : ₹168800 ₹125000
26% OFF!
26 people have bought this recently Estimated Delivery By: Sep 19 - Sep 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹125000 (Including GST)
MRP : ₹168800
26% OFF!
Get Extra ₹1,875 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The HPM Osprey HP-50i is a 5 KVA digital inverter generator powered by a 6.5 HP 223cc engine with self start, delivering 5000 VA max pure sine wave output (THD < 2%).
Country of origin: India
Specifications
- Brand: HPM
- Output Current Range : 18.3 amp
- Model: HP-50is
- Max AC Output: 5000 VA
- Rated AC Output: 4200 VA
- Rated Current: 18.3 Amps
- NFB Amps: 18 Amps
- AC Voltage & Frequency: 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
- Alternator Type: Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Inverter Type: 100 KHz, IGBT Based Digital Inverter – 5 Kw
- Engine Model: HM170P
- Engine Type: OHV 25° Inclined, Single Cylinder, 4 Strokes, S.I, Forced Air Cooling
- Maximum Engine Power: 6.5 HP @ 3600 RPM
- Bore x Stroke: 70 x 58 mm
- Displacement: 223 cc
- Starting System: Self Start
- Governor Type: Electronic Governor (Load Sensitive – Variable Speed)
- Engine RPM: 2200 RPM (No Load) to 3800 RPM (Full Load)
- Fuel Type: Petrol + LPG (Optional)
- Fuel Tank Capacity: Petrol - 20.5 Ltr.
- Fuel Consumption: Petrol Approx. 1.4 ltr/hr, LPG: 825 gm./hr.
- Lube Oil Capacity: 600 ml.
- Lubricating Oil Consumption: 2.5 gm./Hr.
- Sound Level: < 86 Db (from 1 meter, as per CBCP - II Norms)
- Panel Features: Analog Voltmeter, Oil Alert System, Overload Indicator (Optional), Fuel Level Gauge, AC On/Off NFB, Electronic Overload Protection
- Mobility: Caster Wheels
- Dimensions (LxWxH): 810 x 500 x 610 mm
- Weight: 70 kgs
- Optional Lithium Battery: 12.8V - 15 Ah (192 x 87 x 83 mm)
Description
The HPM Osprey HP-50is is an ultra-lightweight, 5 KVA petrol and optional LPG dual-fuel digital inverter generator designed to power sensitive electronic products and heavy household appliances. Powered by a 6.5 HP 223cc HM170P single-cylinder 4-stroke engine, it features a 100 KHz IGBT-based digital inverter and a 18-pole multi-phase permanent magnet alternator. The generator delivers a maximum output of 5000 VA and a rated output of 4200 VA with pure sine wave power (THD < 2%), providing a stable regulated voltage of 230V ± 1% and 50 Hz ± 1%. It is equipped with an electronic governor that varies engine speed from 2200 to 3800 RPM to optimize fuel consumption, a 20.5-liter petrol fuel tank, self start, caster wheels, and support for running two units in parallel to produce up to 9 KVA power.
Features
:- Ultra-lightweight digital inverter-based generator with 5000 VA max AC output and 4200 VA rated output
- Pure sine wave power delivery with THD < 2%, stable voltage 230V ± 1%, and frequency 50 Hz ± 1%
- Load-sensitive electronic governor adjusts engine speed from 2200 RPM (no load) to 3800 RPM (full load) for low fuel consumption
- Dual fuel compatibility supporting Petrol (20.5 L tank) and optional LPG fuel operation
- Paralleling capability allowing 2 HP-50i generators to run in parallel producing 9 KVA total power (4.5 KVA + 4.5 KVA)
- Multi-phase 18-pole permanent magnet alternator with self-excitation and 100 KHz IGBT-based 5 Kw digital inverter
- Inbuilt electronic overload protection, NFB switch, analog voltmeter, oil alert system, and fuel level gauge
- Equipped with caster wheels for easy mobility and portability
Accessories
:- 1 Set Tool Kit
- 1 Set Welder Holder
- 1 Set Earthing Clamp with 3Mtr. Cable
- 1 pc Oil Funnel
- 1 Owner's Manual
Applications
:- Serving electrical requirements in IT sector, remote areas, and field applications
- Powering sensitive electronic products such as laptops, computers, and digital appliances
- Running modern household electrical and electronic appliances including refrigerators, microwaves, induction plates, and automatic washing machines
- Running 1.5 Ton air conditioners
- Charging battery inverters and powering frequency & voltage sensitive equipment
- Military and powering defense equipment
Usage
:- Pulling the self start mechanism to start the HM170P engine for portable power supply
- Connecting sensitive electronics or heavy household appliances to the 230V AC output
- Switching between petrol and optional LPG fuel depending on availability
- Connecting two HP-50i units together using an extra socket panel for 9 KVA parallel power output
- Utilizing caster wheels to move and transport the 70 kg generator to remote work sites or field applications
Shipping Weight & Dimensions
:
Verified Package Dimensions (L X W X H)
:
42 cm X 45 cm X 39 cm
Package Weight
:
27.00 Kg
