Brand : HPM

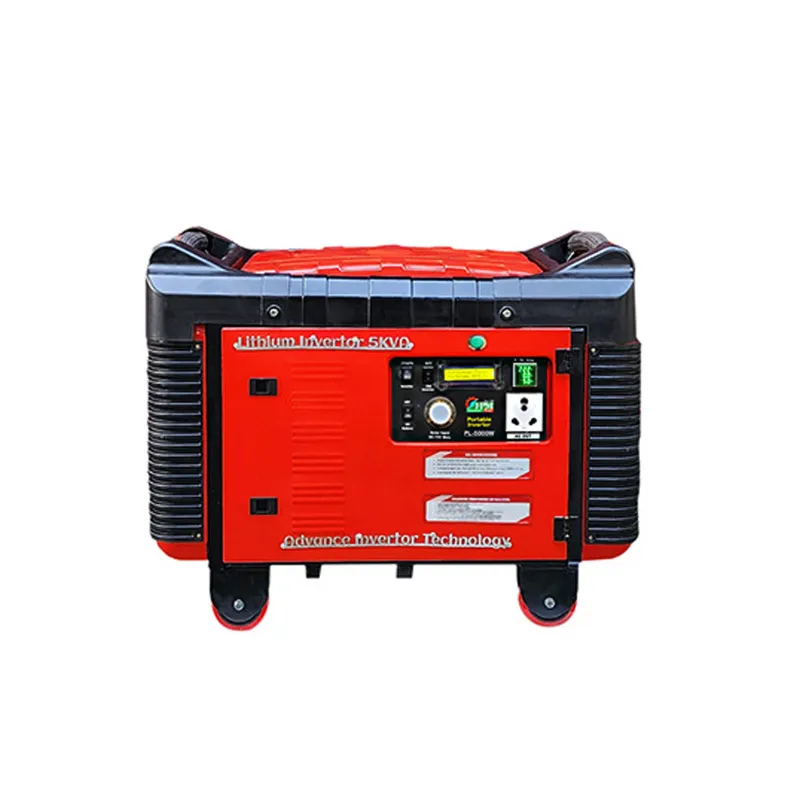

HPM 5 KVA Portable Lithium Power Inverter (PL-5000W-XL)
SKU : TI-H5-38181
MRP : ₹180000
₹148810
17% OFF!
-
1
+
Get Extra ₹2,232 OFF on Prepaid Orders
Delivery By: Jun 27 - Jun 29
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 5 KVA Portable Lithium Power Inverter
Country of origin: India
Specification
  • Brand: HPM
  • Weight (Approx.) : 106 kg
Battery

  • Cell Chemistry : Lithium Ion NCM
  • Cell Type : Cylindrical 21700, 3.6 V- 5000 mAh
  • Nominal Battery Voltage : 50.4 V
  • Cell Configuration : 14S - 8P
  • Total Battery Capacity :  160 AH - 8 KWH
  • Life Cycles : ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)

BMS (Battery Management System)

  • Multiple Safety Protections : Overload, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
  • Shelf Life : Charge Every  3 - 6 Months

AC 230 Volt Output (Inverter AC Output Power)

  • Maximum AC Output Power : 5000 VA
  • Rated Voltage & Type : AC - 230 V, 50Hz, Pure Sine Wave
  • THD : < 3% (Full R Load)
  • Power Factor : 0.8
  • Rated Current : 17.3 Amps
  • Overload : 110% < Load <120% @ 40 Sec ; 120% < Load <150% @ 4 Sec"
  • Power Less (No Load & Turned- Off) :  < 10W
  • AC Output Back time @ 70% of rated load (VA) : ≥ 3 Hours
  • Max. Efficiency (>70% Load) : 85%
  • AC Output Socket (For Load Connection)  :
  • Indian Version AC Socket x 1(US/UK/EU/AU Socket) HT60-2 Way Terminal Block"

LED Flood Light & Fixture

  • Illumination High Power LED Flood Light : 48V - 50W (High Bright).     LED Flood Light Illumination at Full Brightness 50W : 8000 Lm  Brightness Adjustment : Smooth Continuous Brightness Control, 5W - 50 Watt,(800 Lm - 8000 Lm)
  •  Light Color : Cool White
  • Color Temp : 6500k
  • Beam Angle : 120 Degree
  • Tower Type  : Foldable, Telescopic Pole
  • Tower Height : Max 7 Ft
  • Tower Height : Min. (Folded Height)    4.5 Ft
  • Light Mounting and Angle Adjustment : Through universal Ball head Joint Light Angle Adj. 0 - 90 Degree       Material : Premium Finish CRC Tube


Control Panel / Charging Input & Other Standard Features

  • Battery Level / Capacity Indicators : Via LCD Display, Battery Switch On & Inverter Switch Off Position       Function Indicators  : Fault Short Circuit Etc. / AC Output Volt / Mains Charging Amps / Load Percentage, Battery Voltage, Mains Voltage, Temperature, Overload,  UPS / Inverter Mode    Overload Buzzer : Yes (Beeps, at the Time of Overloading)
  • Mode Selection - (UPS / Inverter) : UPS :-≤ 10 ms (Working Range 190V - 265V)
  • Inverter :≥ 20 ms (Working Range 120V - 275V)"
  • Mains Overload Protection (NFB) : Yes (26 Amps)
  • Inverter Bypass : Yes (By Rotary Switch)
  • AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : External 32 Amps EU type AC Socket and Plug Provided for Grid Connection
  • Charging Rate : 20 Amps
  • Charging Time : > 8 Hours
  • Solar Panel Connection / Compatibility : Yes, 2 Pin Input Metal Socket Provided on Control Panel
  • Recommended Minimum Solar Panel : 330 W - 36V * 2S
  •  Fast Charging Portable Petrol Engine Charger Himalayan Model : BC-5080A : 50V - 80 Amps (4000 Watt Maximum )
  • Charging time : Approx. 2.5 Hr. for 80% Charging.
  • Costar Wheels : Yes
  • Heat Dissipation : Twin AC Cooling Fan
  • IP Rate : IP 55 Protected from Water Spray < 15˚From Vertical

Working Condition

  • Charge Temperature : 0˚C ~ 45˚C
  • Operating Usage Temp. : -10˚C ~ 40˚C
  • Operation Storage Humidity : 5% ~ 90%
Description
This is a Portable and Compact Lithium Inverter, It runs 1.5Ton AC & Other Load Up to 5KVA, Dual Use, as Inverter Mode & UPS Mode.

Accessories

 :
  • 1 x PL-5000W Lithium Inverter
  • 1 x 3 pin Mains AC Plug
  • 1 x User Manual
  • 1 x 32 Amps EU type AC Plug
  • Solar Panel 330 Watt x 2S (Optional)

Applications

 :
  • Best suitable for Home use, Shops, Offices, Coaching Centers, Institutes, Computer Center, Gaming Center, Dental Clinics, Nursing Homes, Salons, Banks, ATMs, LED Advertising Vans, Food Vans, Ambulances, RTV /OBM Vans, Pantry Vans, Submersible Pump, All Computer & UPS Applications, Industrial Use, etc.
