Brand : HT

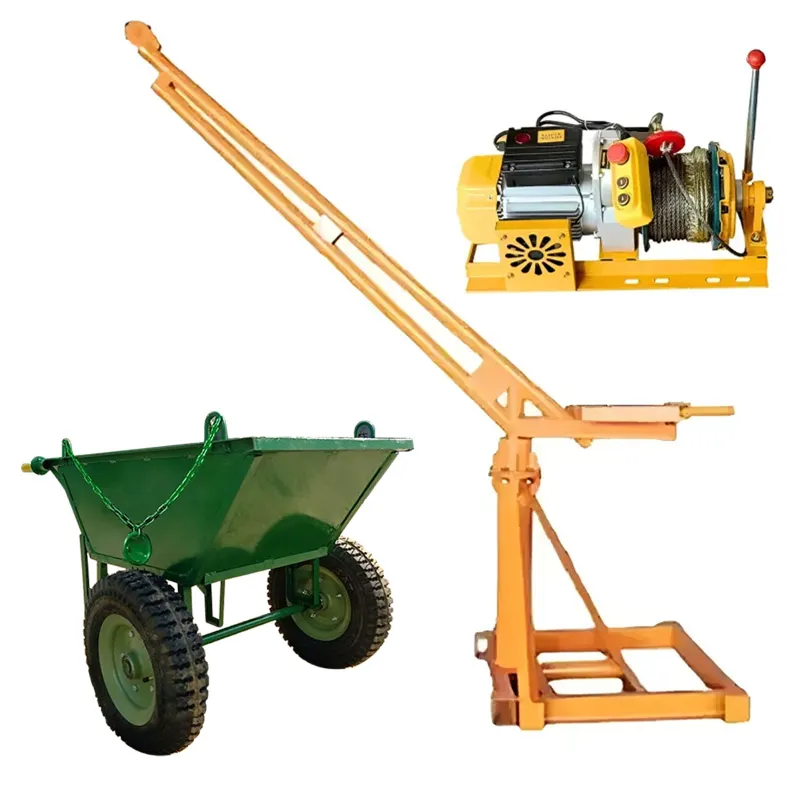

HT 500 kg 360° Mini Crane With Electric Clutch Winch, 5 Hp Motor - 8 mm 50 Meter Wire Rope And 1 Wheel Trolley
SKU : TI-H5-25089
MRP : ₹49000
₹35750
27% OFF!
-
1
+
Get Extra ₹536 OFF on Prepaid Orders
Delivery By: Jun 5 - Jun 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HT 500 kg Capacity 360° Mini Crane With Electric Clutch Winch & 1 Wheel Trolley
5 HP Copper Winding Motor
50 Meter 8 mm Wire Rope
Single Phase

Country of origin: China
Description
A mini crane is a compact lifting machine designed for use in tight spaces where traditional cranes cannot operate effectively. These cranes are particularly useful in construction, maintenance, and industrial applications, allowing for the lifting and moving of heavy materials in confined areas

Features

 :
  • This machine is small and compact in size.
  • Easy to operate and can be used in smaller areas.
  • Strong and heavy motor.
  • Heavy and Thicker wire rope

Specification

 :
  • Product Type: Floor Cranes
  • Brand: HT
  • Power : 5 hp
  • Weight (Approx.) : 125.84 kg
  • Load Capacity : 500 kg
  • Product Type : Mini Crane With Electric Clutch Winch
  • Brand : HT
  • Rotation Angle : 360°
  • Phase: Single Phase
  • Motor : 5 HP
  • Winding : 100% Copper Winding
  • Load Capacity : 500 kg
  • Rated Voltage : 220V
  • Clutch System : Yes
  • Wire Rope Length : 50 meters
  • Wire Rope Diameter : 8 mm
  • Maximum Lifting Height : 50 meters
  • Continuous Working Capacity : 2 hrs. (Approx.)
  • Speed : 15-20 meter per mins

Package Contains :
  • 1 x Crane
  • 1 x Electric Clutch Winch
  • 1 x Eye Hook
  • 1 x Wire Rope
  • 1 x Remote
  • 1 x Voltmeter
  • 1 x Wheel Trolley

Applications

 :
  • Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
This product will be shipped in 5 packages.View All
