Brand : HT

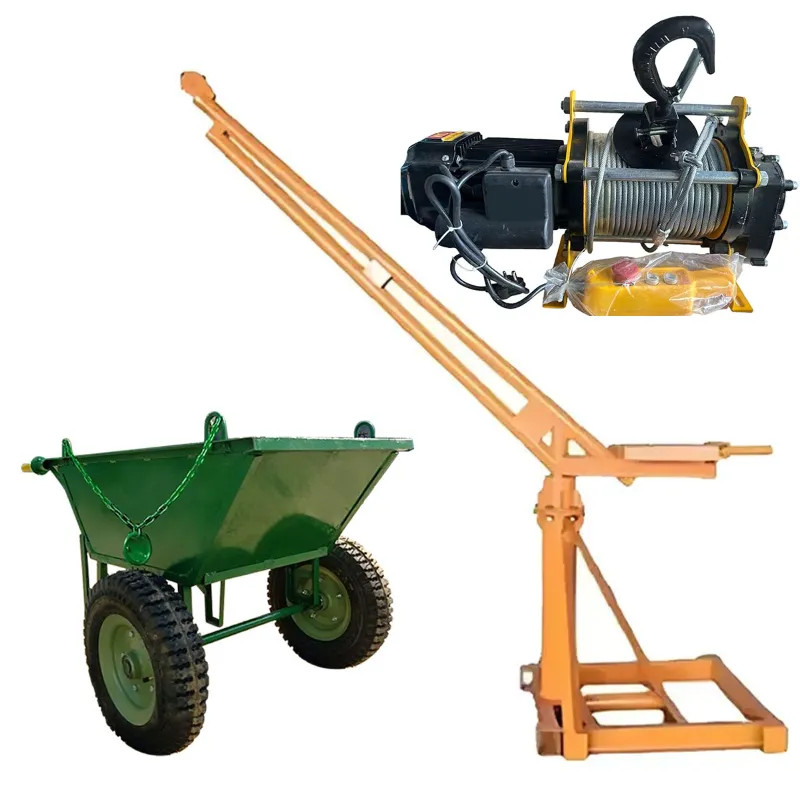

HT 500kg Capacity 360° Mini Crane With Electric Winch, 3 Hp Motor, 40 Meter Wire Rope & 1pc Double Wheel Trolley
SKU : TI-H5-25102
MRP : ₹50000
₹32999
34% OFF!
-
1
+
6 people have bought this recently
Get Extra ₹495 OFF on Prepaid Orders
Delivery By: Nov 6 - Nov 8
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HT 500 kg Capacity 360° Mini Crane With Electric Winch & 1 Double Wheel Trolley
3 HP Copper Winding Motor
40 Meter 8 mm Wire Rope
Single Phase
160 Kg Load Capacity Wheel Trolley With 1 Meter 8 mm Chain
Lifting Speed 18 Meter/ Minute
Country of origin: China
Specification
  • Brand: HT
  • Power : 3 hp
  • Weight (Approx.) : 110.3 kg
  • Load Capacity : 500 kg
  • Product Name : Mini Crane With Electric Winch Machine & Double Wheel Trolley
  • Rotation Angle : 360°
  • Phase: Single Phase
  • Motor Power : 3 Hp
  • Winding : 100% Copper Winding
  • Load Capacity : 500 kg
  • Input Power : 2200 W
  • Rated Voltage : 220V
  • Wire Rope Length : 40 meters
  • Wire Rope Diameter : 8 mm
  • Maximum Lifting Height : 40 meters
  • Continuous Working Capacity : 2 hrs. (Approx.)
  • Speed : 18 meter per mins
  • Lifting Height : 40 Meter

Wheel Trolley :
  • Product Type : Wheel Trolley
  • Brand : Made In India
  • Load Capacity : 160 Kg
  • Material : Mild Steel
  • Chain Available : Yes
  • Chain Length : 1 Meter
  • Chain Dia : 8 mm

Package Contains :
  • 1 x Crane
  • 1 x Electric Clutch Winch
  • 1 x Eye Hook
  • 1 x Wire Rope
  • 1 x Remote
  • 1 x Voltmeter
  • 1 x Double Wheel Trolley
Description
The 500kg Mini Crane is a compact and efficient lifting solution designed for construction and material handling applications. An electric winch is a mechanical device that utilizes an electric motor to lift, pull, or position heavy loads.

Features

 :
  • This machine is small and compact in size.
  • Easy to operate and can be used in smaller areas.
  • Strong and heavy motor.
  • Heavy and Thicker wire rope.

Applications

 :
  • Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
