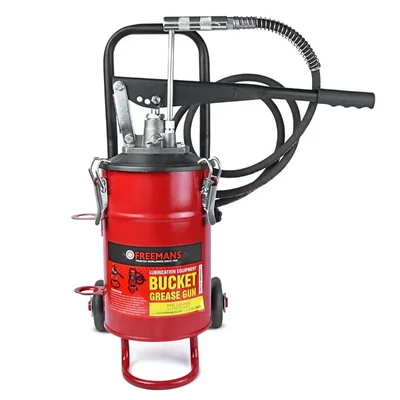

Freemans 5000 PSI High Pressure Bucket Grease Pump with Trolley Foot Rest and Variable Stroke Handle, BPT5

• Part Number: BPT5
• Maximum Fluid Output Pressure: 5000 pounds per square inch
• Tank Volume Capacity: 5 kilograms
• Fluid Mechanics Operation Type: Manual Hand Operated Lever
• Hose Length Measurement: 2.2 meters
• Hose Interior Diameter Size: 1/4 inch
• Pump Head Assembly Component: Die-Cast Aluminum
• Delivery Adapter Fitting Type: Professional Heavy Duty Coupler
• Primary Structure Assembly Material: Steel and Aluminum
• Finish Outer Color Tint: Industrial Red
• Mobility Wheel Attachments: Integrated Rolling Trolley Frame

Features

• High-Pressure Capabilities: Achieves up to 5000 PSI output for deep penetration and reliable fluid movement through packed grease joints.
• Variable Stroke Control: Designed with an adjustable handle stroke that allows users to regulate the grease flow volume accurately per pump.
• Large Reservoir Tank: Holds up to 5 kg of grease to eliminate frequent stopping for structural refills during larger maintenance tasks.
• Integrated Workshop Trolley: Fixed to a supportive mobile trolley frame featuring durable wheels for seamless point-to-point transport.
• Air Trapping Relief Valve: Built-in physical bleed valve quickly discharges pocketed air locks to protect steady fluid streams.
• Reinforced Hydraulic Hose: Packaged with a 2.2-meter by 1/4-inch robust rubber hose coupled with secure steel fittings to eliminate leaking.
• Ergonomic Foot Anchor: Molded bottom footrest delivers a solid foundation for your posture during manual downward pumping cycles.

Applications

• High Pressure Performance: Features 5000 PSI pump capability with variable stroke handle for precise control in automotive and industrial applications.
• Generous Capacity: 5 kg grease tank capacity with aluminium die-cast head and professional coupler for efficient lubrication tasks.
• Advanced Features: Equipped with air release valve to remove trapped air, ensuring smooth and consistent grease dispensing.
• Durable Construction: Includes 2.2 x 1/4-inch high-pressure rubber hose fitted with steel connector for reliable operation.
• Ergonomic Design: Built-in foot rest provides stability during operation, complemented by comfortable pistol grip handle for ease of use.

Usage

• Ensure the 5 kg main bucket storage is properly filled with appropriate industrial-grade mechanical machinery grease.
• Securely latch the aluminum pump head assembly onto the bucket rim to establish a contamination-proof seal.
• Depress the built-in structural air release button to bleed out internal air pockets until a pure stream of grease passes.
• Step firmly onto the built-in stabilizing lower footrest with your shoe to lock down the dispenser body during operation.
• Securely couple the primary hydraulic steel tip nozzle adapter over the matching grease zerk fitting of your machinery.
• Adjust the manual lever arm positioning to fine-tune stroke limits before pushing downwards to feed fresh grease.
