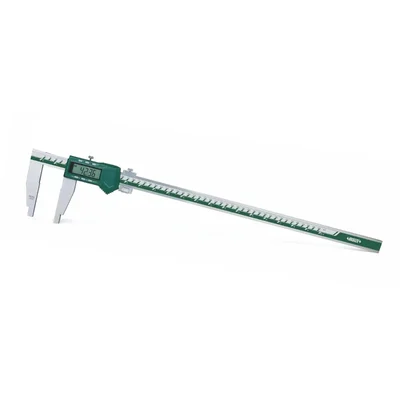

Insize 508 mm SS Digital Caliper, 1106-501 Model, 100 mm Lower Jaw Length

• Model No : 1106-501
• Measurement Range : 0 - 508 mm
• Resolution : 0.01 mm
• Measurement Range : 0-20 Inch
• Resolution : 0.0005 Inch
• Material : Stainless Steel
• Power Supply : Battery CR2032
• Overall Length : 675 mm
• Display : LCD
• Accuracy : ±0.05 mm
• Lower Jaw Length : 100 mm

Features

• Extended Jaw Depth: The 100 mm jaws allow you to measure the center of large parts or reach over tall flanges/obstructions to capture a precise thickness.
• Large Measuring Range: Covers 0–508 mm (0–20 inches), filling the gap between standard workshop calipers and industrial floor gauges
• Hardened Stainless Steel: The body is made of high-quality hardened stainless steel, preventing beam flex even at the full 20-inch extension

Applications

• Industrial Pipe & Flange Inspection: Measuring the outside diameter (OD) and wall thickness of large-scale industrial piping.
• Heavy Machinery Maintenance: Checking the dimensions of large shafts, bearings, and hydraulic cylinders.
• Automotive & Aerospace: Measuring large engine blocks, airframe structural brackets, and wide tire treads.
• Foundry Work: Ideal for large castings where the deep reach is needed to measure across irregular, bulky surfaces.
