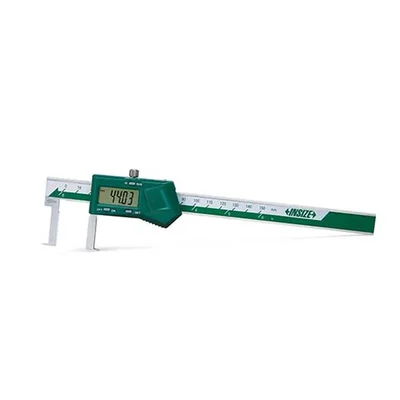

Insize 30-300mm Digital Caliper, 1120-300A Model

• Model No : 1120-300A
• Measurement Range : 29.972 - 304.8 mm
• Resolution : 0.01 mm
• Material : Stainless Steel
• Power Supply : Battery CR2032
• Overall Length : 410 mm
• Display : LCD
• Accuracy : ±0.05 mm
• Lower Jaw Length : 50 mm

Features

• Flat-faced internal jaws : Equipped with Flat-faced internal jaws designed to measure the diameter of grooves
• Automatic Power Off: To conserve the CR2032 battery, the unit shuts down automatically after a period of inactivity.
• Function Buttons : Simple interface with On/Off, for setting a starting value

Applications

• O-Ring Groove Inspection: Verifying the depth and diameter of grooves inside hydraulic or pneumatic cylinders.
• Snap-Ring Channels: Ensuring the internal channel for a snap-ring is machined to the correct tolerance.
• Step Measurement: Measuring internal steps or offsets inside a bored hole where standard calipers cannot reach.
