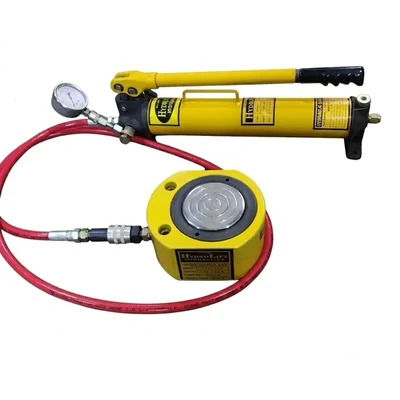

Compact 50 Ton low height hydraulic cylinder with hand pump, 2m hose, and pressure gauge.

Country of origin: India

Brand: HYDROLIFT
Weight (Approx.) : 7.8 kg
Load Capacity : 50 ton
Lifting Capacity : 50 ton
Lifting Range : 72 - 88 mm

Model: HL-LLJ-50
Type: Low Height Hydraulic Cylinders
Tonnage: 50 Ton
Stroke: 16 mm
Oil Capacity: 101 mm
Closed Height A: 72 mm
Extended Height B: 88 mm
DxL Outside Dia: 148x120 mm
Inside Dia E: 95 mm
Piston Dia F: 70 mm
Port Thread: ZG3/8"-19

The HYDROLIFT Hydraulic Low Lift Jack is a low height hydraulic cylinder constructed with a chrome-plated cylinder wall and principal axis to prevent corrosion and reduce friction. It features an integrated spring for quick flexing capability, a high-quality brass ring joint to protect against overloading and absorb heaviness from the other side, and a stopping ring to protect the cylinder when the stroke reaches the top.

Features

Chrome-plated cylinder wall and principal axis to prevent corrosion and reduce friction.
Principal axis designed to avoid axis break when overloading.
High-quality brass ring joint to protect against overloading and absorb heaviness from the other side.
Built-in spring providing quick flexing capability.
Stopping ring to protect the cylinder when the stroke reaches the top.

Applications

Heavy lifting in low-clearance areas

Usage

Connect the hydraulic hand pump to the cylinder port (ZG3/8"-19) using the 2mtrs hose.
Monitor operational pressure with the pressure gauge during lifting.
Operate the hydraulic hand pump to extend the cylinder piston up to the 16mm stroke limit.
Utilize the quick flexing spring to retract the piston once pressure is released.
