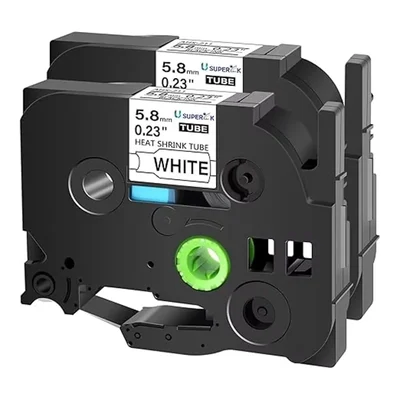

Brother P-Touch Compatible 5.8mm Black on White Industrial Heat Shrink Tube Cable Marking Cartridge HSE-211

• Tube Nominal Width: 5.8 mm (0.23 Inches)
• Roll Spool Length: 1.5 Meters (4.9 Feet)
• Target Cable Outside Diameter Range: 1.7 mm to 3.2 mm
• Shrink Matrix Ratio: 2:1 Elastic Shrinking Index
• Maximum Electrical Voltage Rating: 300 Volts
• Operational Temperature Tolerance Threshold: Up to 125°C (257°F)
• Material Chemical Framework: Polyolefin Heat-Shrinkable Matrix
• Hardware Drive Compatibility: Natively optimized for Brother P-touch industrial models PT-E300, PT-E500, PT-E550W, PT-P750WVP, PT-P900, PT-P900W, and PT-

Features

• 2:1 Radial Shrink Matrix: Shrinks uniformly to half its original circular size upon heat application, ensuring a secure, anti-slip fit on delicate wiring assemblies.
• High-Voltage Insulation Core: Built from rugged polyolefin material rated to safely insulate electrical connections up to 300V and withstand temperatures reaching 125°C.
• Indelible Black-on-White Layout: Yields highly contrasting text properties that remain crisp, highly smudge-resistant, and entirely immune to industrial scuffing.
• Industrial Environmental Shield: Specially formulated to shield underlying cable metadata from liquid chemical splashes, direct water exposure, and UV rays.

Applications

• Industrial electrical panel board assembly, control box wire termination indexing, and circuit matrix identification.
• Telecommunications structural cable management, server room patch bay fiber tracing, and network routing lines.
• Heavy manufacturing plant facility infrastructure upkeep, machinery asset numbers mapping, and safety terminal tags.
• Commercial building automation system integration, internal low-voltage sensor lines tagging, and laboratory conduit setups.

Usage

• Turn off the primary power switch of your compatible P-touch industrial label printer before opening the side mechanism shell.
• Depress the outer release latches to swing open the internal media cassette carriage door cleanly.
• Extract any empty or expired tape cassettes upward from the drive indexing spools.
• Unpack the new CoiNel HSE-211 5.8mm heat shrink tube cartridge from its protective retail box wrapper.
• Check the internal black carbon ink ribbon layer; manually turn the cog wheel counterclockwise to remove any slack loops.
• Align the module structural guide peg grooves over the printer housing pins, pushing down firmly until it seats against the thermal transfer line printhead.
• Feed the raw white tube lead tip slightly past the cutter gate, snap the cover door closed, turn on utility power, and draft your identification scripts.
• Print your text string, slide the custom-printed tube sleeve over the detached termination end of the targeted wire line, position it cleanly, and apply localized heat via an industrial heat gun tool until it shrinks uniformly into a tight fit.
