Brand: Kirloskar

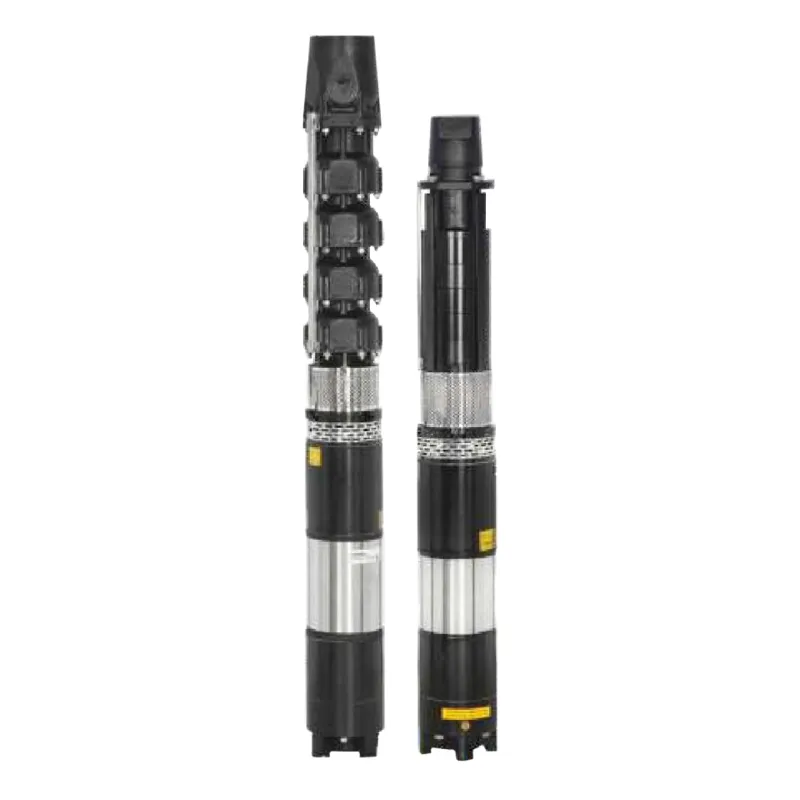

Kirloskar 6 HP 3 Stage 15Cm(6") 3Phase Water Filled Borewell Submersible Pump, 124ft Head - 1 Year Warranty (KS6G-0603R)
SKU: TI-K6-19196
₹44999 (Including GST)
MRP : ₹70000
Get extra ₹675 Discount (On Checkout)
Delivery By: May 27 - May 29
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 6HP Three Phase Borewell Submersible Pump
1200 LPM Max. Discharge
38m Max. Head Range
150mm(6") Borewell Size
1 Year Warranty
Country of origin: India
Description
Kirloskar’s KS6 series three-phase borewell submersible pumps, with a water cooled technology & 15 CM(6 inch) borewell, are an optimal choice for various applications where a reliable and robust water supply system is essential. These pumps are specifically designed to ensure longer life and minimal maintenance, making them an ideal selection for irrigation in horticulture and agriculture, domestic and community water supply, as well as rural water supply projects. The key features that contribute to the longevity and trouble-free operation of these submersible water pumps include corrosion and abrasion resistant parts.
Features
:- Wide Voltage Motor Designs With 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 99.9% Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
- Sand Fighter Designs : Innovative Sand Fighter Designs restricts the entry of sand in motors, protects the pump and motor bushes to perform well in sandy borewells and increase the pump set life.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained
- Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% Electro Grade Copper Rotor and Winding Wires for longer and trouble free life
- High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- CED-Cathode Electro Deposition Coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life
- Design to Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
- Glycol-Mixed Water : Motors filled with specially developed Glycol mixed water to improve the anti-freezing properties of motor and prevent corrosion.
Specification
:- Brand: Kirloskar
- Power : 6 hp
- Weight (Approx.) : 80.8 kg
- Flow Rate : 1200 lpm
- Head : 38 meter
- Model No. : KS6G-0603R
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- Wattage : 4.5 kW
- Electricity Connection : Three Phase
- Rated Voltage : 415 Volt, 50 Hz
- Rated Current : 12 Amp.
- No. Of Stages : 3
- Outlet Size : 100 mm
- Borewell Size : 15 Cm (6 inch)
- Max. Head : 38 Meter (124 Feet)
- Max. Discharge Rate : 1200 LPM (72000 LPH)
- Winding Material : Copper
Material Of Construction :
- Impeller : Stainless Steel / Noryl
- Diffuser : Cast Iron / Noryl
- Bowl / Stage Casing : Cast Iron
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Finisher Rotor : Copper
- NRV : Cast Iron
- Suction : Cast Iron
- Pump/Motor Bushes : NBR/LTB
- Thrust Bearing : Carbon + SS
Applications
:- Irrigation in horticulture & agriculture
- Domestic and community water supply
- Sprinkler and drip irrigation
- Rural water supply
- Ground water supply to water works.
WARRANTY :
- 1 Year Online Warranty.
