Brand : HPM

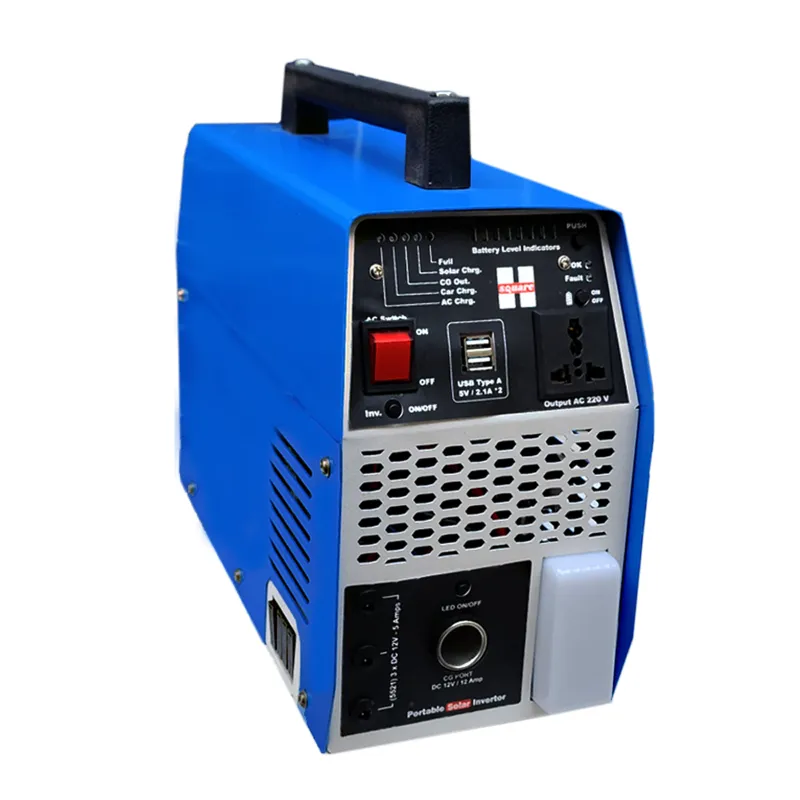

HPM 600VA Solar Inverter Power Station With In-built Lithium Battery (Solar 700Li-Eco)
SKU : TI-H6-22511
MRP : ₹40000
₹25000
38% OFF!
Get Extra ₹375 OFF on Prepaid Orders
Delivery By: Sep 23 - Sep 25
Show Similar
Notify Me
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 600VA Solar Inverter Power Station
In-built Lithium Battery
Country of origin: India
Specification
  • Brand: HPM
  • Weight (Approx.) : 15 kg
  • Model No. : Solar 700Li-Eco
  • Dimension : 170x390x350mm

Inverter :
  • Battery: Lithium Iron Phosphate LiFePo4
  • Type : Prismatic 3.2 V- 70 AH
  • Battery Voltage : 12.8 V (4S)
  • Life Cycles : ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
  • Single Cell Equivalent Capacity : 280 Ah @ 3.2 V
  • Solar Charge Controller & Protections : 12V- 10 Amps Solar Charge Controller-Multifunction
  • Multiple Safety Protections: Over Load, Over Voltage, Over Current, Short Circuit
  • Battery Expansion : Yes,  Expandable, can Add 1 Pack 12.8V - 70 AH
  • Shelf Life : Charge Every  3 - 6 Months

AC 230 Volt Output (Invertor Power Supply) :
  • Continues Rated Power Output : 500 W
  • Peak Output Power :   600 W
  • Voltage & Type :AC - 230 V,50Hz, Modified Sine Wave
  • THD : < 3% (Full R Load)
  • Power Factor : 1 (Unity)
  • Over Load : 116% < Load <150% @ 2min / 150% < Load <200% @ 10 S
  • Power Less (No Load & Turned- Off) : < 10W
  • AC Output Back time @ 70% of rated load (VA) : ≥ 2 Hours & 15 Minutes
  • Max. Efficient (>70% Load) : 92%
  • Output Socket : Indian Version AC Socket x 1

DC - Output- 12V- Cigarette Lighter Socket :
  • Output Voltage : 12.8 ± 1 V
  • Continuous Output Current : 12 A (Max. 150 Watt)
  • DC Output Over Load Current Protection : Yes >13 A (Through Fuse Provided in C.G Pin)
  • DC Output Short Circuit Protection : Yes (Disconnect Load Recovery)

Other DC Outputs - 5V to 20 V & DC Ports :
  • USB Output (2) : 2* 5V DC, 2.4 A (12W Per Port)
  • 12V DC -DC 5521 (3 Ports) : 2 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
  • USB & DC Over Load Current Protection : Yes
  • USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
  • Illumination / LED Flash Lighting : 1 * 12W (High Bright).

Indicators in Panel :
  • Battery Level / Status Indicators : Battery Level Shows 8 Segment LED's
  • Function Indicators : Fault / AC Output / PV Charges / Mains Charging / Car Charges

Charging Input Power (4 Way of Recharge) :
  • AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : AC - DC Adapter (CC/CV) - 8mm Port 15V-12A (150 Watt Max.) Charging Time > 6 Hours
  • Solar Panel PV Charge :MPPT Solar Panel 15V / 15 Amps - Max 240 W, Charging Time 5 - 6 Hours
  • Car Charge Input (From Cigarette Socket) : 12 - 14V, 10 Amps Max. Charging Time 7 - 8 Hours
  • LPG / Petrol Genset Charger : 15 V - 30 Amps (500 Watts Maximum) Charging time  <  2.5 Hr.
  • Heat Dissipation : Air Cooling (Fan), Aluminium Housing
  • IP Rate : IP 32 Protected from Water Spray < 15˚From Vertical

Working Condition :
  • Charge Temperature : 0˚C ~ 45˚C
  • Operating Usage Temperature : -10˚C ~ 45˚C
  • Operation Storage Humidity : 5% ~ 90 %
Description
  • Solar 700Li-ECO is a Portable multifactional Lithium power Generator.
  • This power station gives AC 230V output & also 2* DC-5V for phone charging & 4* 12V DC output for running 12V DC appliances. This Solar 700 Li-ECO model has a inbuilt  15W High Power LED Light.
  • The main advantage of this Power Station is that, it is portable and support both AC and DC loads.
  • This is  a lightweight Portable Power Station & can be used at household & as well can be carried away anywhere for outdoor/ field power applications. This solar station has a big Lithium Power Pack of 12.8V-70AH, which is largest in its Class & hence have a longer Backup period.

Accessories

 :
  • 1 AC/DC Wall Charger Adapter (150W) Inbuilt
  • 1 Car Charger (Cigarette Lighter Cable)
  • 1 Set of User Manual

Applications

 :
  • Due to Big Lithium Battery (70Ah), It has Long Backup Hence more Useful for home use in case of Power cuts. It supports 240 Watt MPTT Solar Panel for Quick Charging of Battery. It is Portable and Can also Carried for Outdoor Fields Jobs, Shop and Commercial Applications.
