Short Description

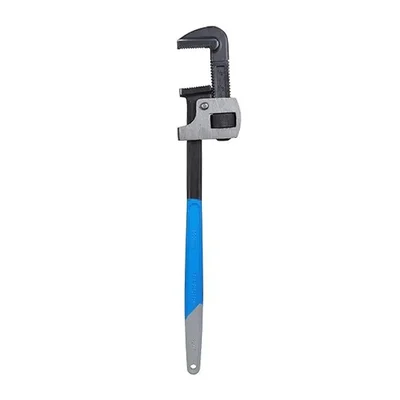

TAPARIA 600mm (24") Adjustable Pipe Wrench
Country of origin: India
Specification
  • Brand: Taparia
  • Weight (Approx.) : 3 kg
  • Net Quantity : 1 pc
  • Model : 1276
  • Type : Stillson‑Type Adjustable Pipe Wrench
  • Overall Length : 600mm (24")
  • Maximum Jaw Opening : 73mm
  • Suitable Pipe Size : 65mm (2.5″) (Approx.)
  • Jaw Material : Drop-Forged High-Grade Carbon Steel
  • Jaw Hardness : 50-60 HRC
  • Jaw Shank Hardness : 35-45 HRC
  • Handle / Body Material : High-Grade Malleable Cast Iron
  • Finish : Phosphate Jaws & Painted Body
Description
  • The Taparia 1276 is a 24-inch (600 mm) Stillson-type adjustable pipe wrench designed for high-torque applications involving large-diameter pipes. Built with drop-forged carbon steel jaws and a robust cast-iron body, it ensures secure grip and reliable performance in demanding plumbing, industrial, and mechanical environments.

Features

 :
  • High-Grade Drop-Forged Jaws : The jaws are made from drop-forged carbon steel for strength and durability.
  • Precision Machined Teeth : The jaw teeth are machined with an included angle of 76°, which ensures firm gripping without biting into the pipe.
  • Differential Hardness : The wrench has a hardness pattern where the jaw teeth are very hard (for wear resistance) and the body/handle is tougher to absorb stress.
  • Conical Compression Spring : Uses a specially designed spring to balance the movable jaw, providing smooth action and long life
  • Rust Resistance : Phosphated jaws and a painted body help protect against corrosion.
  • Robust Construction : The housing is made of high-grade S G cast iron, and the adjustment nut is knurled for easy operation.
  • Standards Compliance : Conforms to IS 4003 (I) – 1978.

Applications

 :
  • Heavy plumbing work involving large-diameter pipes
  • Industrial maintenance of pipe networks in plants, refineries, and mechanical systems
  • Construction and installation of large pipe lines
  • Maintenance of HVAC or boiler systems with large pipe runs
  • Workshop and service tasks requiring high torque to tighten or loosen big pipes

Usage

 :
Maintenance & Care :

Cleaning : After use, wipe off dust, metal shavings, and any residue from the jaws and body.
Lubrication : Apply a light machine oil to the adjusting nut and the sliding movable jaw periodically — helps maintain smooth operation.
Rust Prevention : Dry the tool thoroughly after use. Use a rust-preventive oil if stored for long periods, especially in humid environments.
Storage : Store in a dry, well-ventilated toolbox or hang it on a tool rack. Avoid leaving it on damp surfaces.
Inspect Jaws : Regularly check the teeth for wear, deformation, or rounding — worn teeth reduce grip efficacy.
Adjust Nut Check : Make sure the knurled adjusting nut remains tight and aligned; a loose nut can cause slippage.
Proper Use : Use this wrench for round pipes only. Avoid applying it to hardened or hex nuts — misuse can damage the jaws.
