Brand: Surya

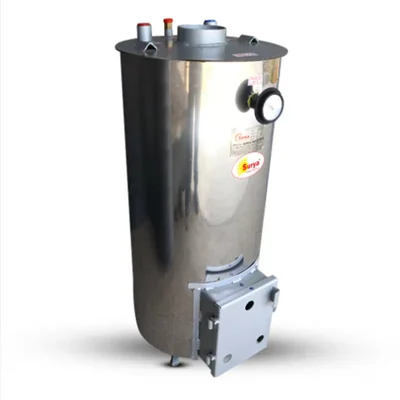

Surya 60L Compact Domestic Glass Wool Insulated Wood Fired Hot Water Boiler 60L
SKU: TI-S6-68246
Estimated Delivery By: Apr 15 - Apr 17
MRP : ₹23399 ₹17999
23% OFF!
Estimated Delivery By: Apr 15 - Apr 17 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹17999 (Including GST)
MRP : ₹23399
23% OFF!
Get Extra ₹270 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Surya 60L is a compact, glass-wool insulated wood-fired boiler designed for domestic use. It provides hot water in 15 minutes, saves 100% on electricity, and features a durable SS-covered body with a 7.5kg pressure rating.
Country of origin: India
Specifications
- Brand: Surya
- Model: 60L
- Capacity: 60 Liters
- Automation Grade: Semi-Automatic
- Working Pressure: 7.5 kgs/cm²
- Fuel Consumption: 2kg (at maximum load)
- Insulation: 50mm Glass Wool
- Outer Cover: Stainless Steel (SS) Sheet
- Inner Tank Thickness: 4mm & 5mm
- Outer Tank Thickness: 3mm
- Top Circle Thickness: 4mm
- Fire Pipe Dimensions: 4.6-inch Diameter x 4mm Thickness
- Inlet/Outlet Size: 3/4 Inch Coupling
- Drainage/Temperature Port: 1/2 Inch
- Safety Valve Port: 1/4 Inch
- Firing Area Volume: 320 cubic inches
- Exhaust Pipe: 8ft Height x 3-inch Diameter
- Total Weight: 56 kg (Empty)
- Dimensions: 16-inch Diameter x 3-feet Height
- Color: Silver Ash
Description
The Surya 60L Wood Fired Hot Water Boiler is a small, highly effective heating option made especially for home usage. This type, which is produced in Coimbatore by Surya Industries, has a sturdy stainless steel cover sheet and cutting-edge 50mm glass wool insulation to provide optimal heat retention and energy efficiency. It is designed to provide hot water with little fuel, like charcoal or home wood waste, in ten to fifteen minutes. It is a great environmentally friendly substitute for electric or solar heaters, giving substantial utility bill savings and outstanding performance even in hard water circumstances. It is designed with a contemporary, space-saving vertical footprint.
Features
:- Quick Heating: In just 15 minutes, the water reaches 60°C, and within 10 minutes, the first indications of hot water appear.
- Superior Insulation: Up to eight hours of heat retention thanks to the 50mm high-density glass wool insulation.
- Hard Water Compatible: Specifically made to withstand the scaling problems that solar heaters usually encounter when utilizing hard or salty water.
- Cost-effective: Compared to LPG, electric, or solar backups, it operates at almost no cost when utilizing home wood waste.
- Sturdy Construction: An inner tank with a rust-proof covering for a longer lifespan is tested for 7.5 kg air pressure.
- Multi-Floor Connection: It can distribute hot water to several stories despite its compact size.
- Compact Design: Only 1.5 x 1.5 feet of installation space is needed.
Applications
:- Domestic Households: Ideal for daily cleaning and bathing by small to medium-sized families.
- Small Guest Houses: Effective hot water supply for each room.
- Staff Quarters: Perfect for on-site housing or labor colonies.
- Rural housing is ideal for places with expensive or scarce access to gas and electricity.
Usage
:- Use charcoal, dried wood, or agricultural waste as fuel. There are no running costs associated with household wood trash.
- Avoid fitting a non-return valve (NRV) for plumbing safety. Avoid using plastic pipes for the primary connection and make sure all connections are leak-free.
- Boiler Maintenance: Keep the boiler's exterior dry at all times. Shampoo, soap, and detergents should not be placed on the boiler's top because the surface becomes hot.
- Ash Management: To ensure that there is enough air for burning, clean the waste ash from the drawer on a regular basis.
- System Flushing: Completely flush the tank if the water starts to smell or turn discolored, which are signs of bacteria.
- Exhaust Maintenance: Clean the exhaust pipe on a regular basis to get rid of dust and soot buildup, which can lengthen heating times and require more fuel.
