TOTAL 650W 22mm 1.7J SDS-Plus Variable Speed Electric Rotary Hammer Drill Machine TH306236

Brand: TOTAL

TOTAL 650W 22mm 1.7J SDS-Plus Variable Speed Electric Rotary Hammer Drill Machine TH306236

Name: TOTAL 650W 22mm 1.7J SDS-Plus Variable Speed Electric Rotary Hammer Drill Machine TH306236
Brand: TOTAL
SKU: SI-T6-82013
Price: 4949 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SI-T6-82013

MRP : ₹6790 ₹4949

27% OFF!

Get Extra ₹74 OFF on Prepaid Orders

Estimated Delivery By: Aug 26 - Aug 28

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹4949 (Including GST)

MRP : ₹6790

27% OFF!

Get Extra ₹74 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

650W 1.7J SDS-Plus rotary hammer drill with 22mm concrete capacity, 3 bits, and BMC storage case.

Country of origin: China

Brand: TOTAL
Power : 650 w
Weight (Approx.) : 4 kg
Drilling Capacity : 13 mm
No-Load Speed : 1700 rpm

Model Number: TH306236
Voltage: 220–240V ~ 50/60Hz
Input Power: 650 W
No-Load Speed: 0–1700 RPM
Impact Rate: 0–5500 BPM
Impact Energy: 1.7 Joules
Chuck System: SDS-Plus
Max. Drilling Capacity (Concrete): 22 mm
Max. Drilling Capacity (Steel): 13 mm
Max. Drilling Capacity (Wood): 25 mm
Packaging: Blow Mold Case (BMC)

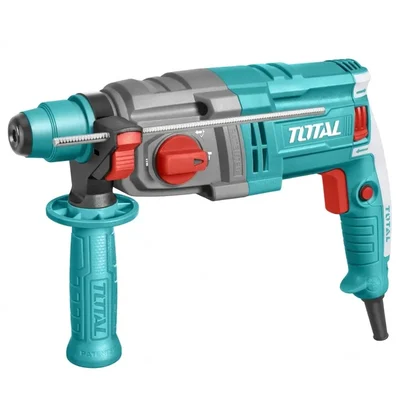

The TOTAL TH306236 Rotary Hammer is a compact and efficient power tool designed for drilling and hammer-drilling in concrete, brick, steel, and timber. Driven by a robust 650W motor, it delivers an impact rate of up to 5500 BPM with 1.7 Joules of impact energy for smooth penetration through masonry. The fast-locking SDS-Plus chuck system enables tool-free drill bit changes, while the variable speed dial (0–1700 RPM) gives complete control over delicate or high-speed drilling tasks. Supplied in a Blow Mold Case (BMC) with 3 SDS-Plus drill bits and a set of replacement carbon brushes, this rotary hammer is ideal for electric, plumbing, and light construction operations.

Features

Efficient 650W motor delivers consistent power for light to medium-duty drilling applications.
1.7 Joules of impact energy combined with a 0-5500 BPM impact rate ensures quick masonry drilling.
Quick-change SDS-Plus chuck system ensures secure bit clamping and minimal downtime.
Variable speed switch (0-1700 RPM) allows precise speed management based on material density.
Max drilling capabilities: 22mm in concrete, 25mm in wood, and 13mm in steel.
Compact, lightweight design with soft-grip housing reduces user fatigue during overhead tasks.

Applications

Drilling anchor and clearance holes in concrete walls, ceilings, and brickwork.
General metalwork, steel frame drilling, and wood panel preparation.
Electrical trunking, conduit fixing, and fixture mounting projects.
Plumbing pipe routing and general interior renovation works.

Usage

Select the required SDS-Plus drill bit, insert it into the chuck, and push until it locks into position.
Connect the rotary hammer to a compatible 220–240V power source.
Position the drill bit tip directly onto the targeted spot on the workpiece.
Gently press the trigger to start drilling at low RPM, gradually increasing pressure as the bit bites into the surface.
Maintain straight alignment without tilting to prevent drill bit binding or premature wear.
Upon completion, release the switch, pull back the SDS chuck collar to release the bit, and pack the unit into the BMC case.
