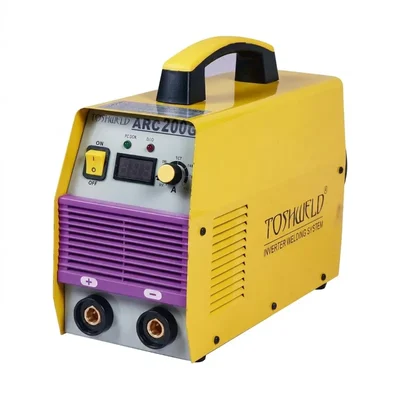

Toshweld 6kVA Single Phase IGBT Inverter Welding Machine, Compact 200A Arc Welder, ARC 200 G
SKU: TI-TA-72129
Estimated Delivery By: May 23 - May 25
MRP : ₹9020 ₹7517
17% OFF!
Estimated Delivery By: May 23 - May 25 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹7517 (Including GST)
MRP : ₹9020
17% OFF!
Get Extra ₹113 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
A portable 200A single-phase inverter welding machine equipped with cutting-edge IGBT technology and a 6kVA power capacity. Designed for reliable metal fabrication, it handles plates up to 6mm thick with exceptional arc stability.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 6 kg
- Output Current Range : 200 amp
- Technology : IGBT
- Model: ARC 200 G
- Technology: IGBT Inverter Welding System
- Phase: 1 Phase (Single Phase)
- Input Power Capacity: 6 kVA
- Input Voltage (V) AC230V±15%
- Output Current Range: 10 – 200 A
- Rated Input Current: 43.6 A
- No-Load Voltage: 58 V
- Power Factor: 0.73
- Electrode Size Compatibility: 2.0 mm – 3.2 mm
- Welding Plate Thickness: 2.0 mm – 6.0 mm
- Dimensions: 15.5 x 6 x 11.5 Inches
Description
The lightweight, professional-grade Toshweld ARC 200 G inverter welding machine was designed to increase industrial efficiency in workshops and on-site operations. It guarantees clean, steady arc striking with less power fluctuations thanks to its sophisticated IGBT (Insulated Gate Bipolar Transistor) Inverter System. This energy-efficient device runs smoothly between 2.0mm and 3.2mm electrodes using a typical single-phase 230V AC supply with a sturdy 6kVA capacity. It produces smooth, distortion-free welds across plate thicknesses ranging from 2.0mm to 6.0mm and has an infinitely adjustable output range of 10 to 200Amps with a clear digital current display.
Features
:- Advanced IGBT Technology: High-frequency switching maximizes arc stability and power efficiency while reducing transformer size.
- Digital Display Ammeter: Offers accurate welding current readings in real time for precise heat input changes.
- Integrated Safety Sensors: Internal circuits are automatically protected by over-current and thermal overload protection LEDs.
- Lightweight & Portable: Easy mobility across challenging jobsites is made possible by a sturdy carry handle and a compact 6 kilogram chassis.
- Superb Power Factor: During continuous stick welding, a power factor of 0.73 guarantees low line power loss and effective energy use.
Applications
:- On-site construction includes welding security gates, iron grills, frames, and structural steel beams.
- Automotive repair includes general body repair panels, exhaust system patching, and chassis reinforcement.
- Custom steel furniture, brackets, storage racks, and industrial enclosures are all made in workshops.
- Maintenance and repair include repairing damaged metal machinery, strengthening pipes, and maintaining ordinary agricultural equipment.
Usage
:- Before starting the machine, make sure the single-phase power source satisfies the AC 230V requirements.
- Tighten the ground clamp into the negative (-) dinse connector and the electrode holder cable firmly into the positive (+) terminal.
- To set the precise welding current (Amps) based on the electrode diameter you have chosen, turn the front dial.
- To maximize circuit efficiency, clamp the ground lead directly to a cleaned, rust-free area of the workpiece.
- To maximize internal circulation and heat dissipation, make sure the front louvers and rear fan intake are kept free when in use.
