Brand: Toshweld

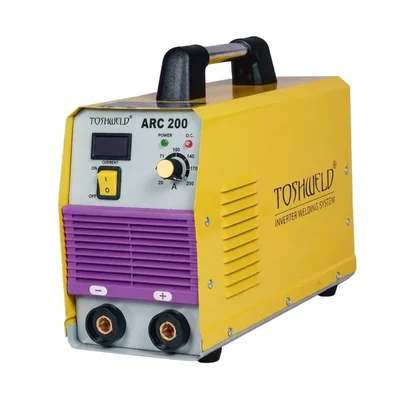

Toshweld 6kVA Single Phase MOSFET Inverter Welding Machine, Heavy-Duty 200A Arc Welder, ARC 200
SKU: TI-TA-72131
Estimated Delivery By: May 24 - May 26
MRP : ₹10813 ₹9011
17% OFF!
Estimated Delivery By: May 24 - May 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹9011 (Including GST)
MRP : ₹10813
17% OFF!
Get Extra ₹135 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
A heavy-duty 200A single-phase inverter welding machine driven by stable MOSFET technology and a 6kVA power capacity. Designed for reliable metal fabrication, it handles plates up to 6mm thick with exceptional arc response.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 8 kg
- Output Current Range : 200 amp
- Technology : MOSFET
- Model: ARC 200
- Technology: MOSFET Inverter Welding System
- Phase: 1 Phase (Single Phase)
- Input Voltage (V): AC230V±15%
- Input Power Capacity: 6 kVA
- Output Current Range: 10 – 200 A
- Rated Input Current: 43.6 A
- No-Load Voltage: 58 V
- Power Factor: 0.73
- Electrode Size Compatibility: 2.0 mm – 3.2 mm
- Welding Plate Thickness: 2.0 mm – 6.0 mm
- Dimensions: 15.5 x 6 x 11.5 Inches
Description
The Toshweld ARC 200 is a heavy-duty, incredibly dependable inverter welding equipment designed to give demanding construction sites and metal fabrication workshops industrial-grade strength. This machine, which is powered by a multi-card MOSFET Inverter System that has been proved in the field, produces a very sensitive and smooth arc with excellent duty cycle performance. With a strong 6kVA capacity and a normal single-phase 230V AC line, it can easily handle welding electrodes ranging from 2.0mm to 3.2mm. With a clear digital ammeter and a wide variable output range of 10 to 200 Amps, it produces sharp, high-penetration welds on sheet metal and plates with thicknesses ranging from 2.0 to 6.0 mm.
Features
:- Reliable MOSFET Technology: Classic arc stability, quick dynamic response, and simple serviceability are all provided by multi-board MOSFET architecture.
- Digital Current Display: Offers a vivid digital ammeter for precise welding current setup and monitoring.
- Over-Current & Thermal Protection: To maintain long-term component health, an integrated "O.C." LED indication detects overloading or heat saturation.
- Rugged All-Metal Chassis: Featuring a stiff carry handle designed for industrial use and a highly resilient, vented metal body.
- High-Efficiency Core: During continuous stick welding, this core's 0.73 power factor maximizes power conversion efficiency and reduces current waste.
Applications
:- Heavy Workshop Fabrication: Building heavy-duty industrial security gates, storage bins, manufacturing racks, and structural iron frames.
- On-Site Metal Building: Patching and welding site-welded brackets, columns, and structural channel iron.
- Automotive Body Repair: Ideal for trailer construction, agricultural tractor attachment repair, and structural chassis welding.
- Commercial general maintenance includes fixing worn-out pipe systems, architectural metal elements, and commercial machinery.
Usage
:- Before turning on the power switch, make sure your single-phase 230V AC socket satisfies the machine's power input requirements.
- Twist the earth clamp lead securely clockwise into the negative (-) socket and firmly insert the electrode holder lead into the positive (+) quick-connect terminal.
- To select your desired output current based on the diameter of the welding rod and the thickness of the material, turn the dial on the front control potentiometer.
- Directly attach the grounding clamp to a spot on the metal work piece that is free of layers of paint, grease, and rust.
- To enable continuous heat extraction during the welding operation, keep the rear cooling fan clearance unobstructed.
