Brand : Kirloskar

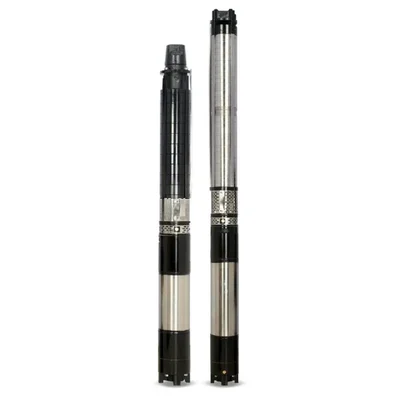

Kirloskar 7.5Hp 12 Stage 15Cm(6") 3Ph Water Filled Borewell Submersible Pump, 188m Head - 1 Year Warranty (60HHF-0812)
SKU : TI-K7-22356
MRP : ₹74500
₹59960
20% OFF!
-
1
+
2354 people have viewed this recently
Get Extra ₹899 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 7.5Hp 12 Stage Three Phase Borewell Submersible Pump (60HHF-0812)
220 LPM Max. Discharge
188m Max. Head Range
150mm(6") Borewell Size
1 Year Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 7.5 hp
  • Weight (Approx.) : 93 kg
  • Flow Rate : 220 lpm
  • Head : 188 meter
  • Model No. : 60HHF-0812
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • Wattage : 5.5 kW
  • Electricity Connection : Three Phase
  • Rated Voltage : 415 Volt, 50 Hz
  • No. Of Stages : 12
  • Outlet Size : 50 mm
  • Borewell Size : 15 Cm (6 inch)
  • Borewell Type : V6
  • Max. Head : 188 Meter (616 Feet)
  • Max. Discharge Rate : 220 LPM (13200 LPH)
  • Winding Material : Copper

Material Of Construction :
  • Impeller : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Body : Stainless Steel
  • Sealing : Oil Seal
Description
The Kirloskar 7.5Hp 12 Stage three phase water filled borewell submersible pump is engineered for high efficiency and durability, capable of delivering a remarkable head of 188 meters. This pump is ideal for deep borewell applications, ensuring reliable water supply with a one-year warranty for peace of mind.

Features

 :
  • Self Priming : No need for foot valve and priming pumps every time for quicker operations
  • Non-Clog Impeller : Nonclog impeller to handle suspended soft solids up to 60 MM in size made it suitable for sewage and dewatering applications
  • Flatter Efficiency Curve : Minimum variations in efficiency during the entire operating range increase the utility of pump set for variable conditions
  • Designed to Prevent Overloading : Lesser chances of motor burning as it does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damage during operation, resulting in consistent performance as concentricity is maintained
  • Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump
  • Easy Maintainable Designs : Easily maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians

Applications

 :
  • Irrigation in horticulture & agriculture
  • Domestic and community water supply
  • Sprinkler and drip irrigation
  • Rural water supply
  • Ground water supply to water works.

WARRANTY :
  • 1 Year Onsite Warranty.
