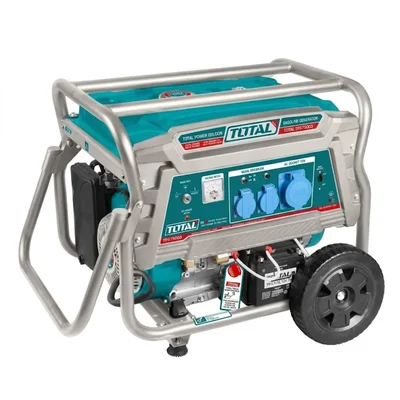

TOTAL 7.5kW 3000RPM 420cc 4-Stroke Electric Start Gasoline Generator TP175006

Brand: TOTAL

TOTAL 7.5kW 3000RPM 420cc 4-Stroke Electric Start Gasoline Generator TP175006

Name: TOTAL 7.5kW 3000RPM 420cc 4-Stroke Electric Start Gasoline Generator TP175006
Brand: TOTAL
SKU: TI-T7-81739
Price: 86499 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-T7-81739

MRP : ₹148000 ₹86499

42% OFF!

Get Extra ₹1,297 OFF on Prepaid Orders

Estimated Delivery By: Aug 19 - Aug 21

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹86499 (Including GST)

MRP : ₹148000

42% OFF!

Get Extra ₹1,297 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Heavy-duty 7.5kW 4-stroke 420cc gasoline generator with 100% copper coil alternator, electric start, and 25L fuel tank.

Country of origin: China

Brand: TOTAL
Weight (Approx.) : 86 kg
Fuel Used : Petrol
Fuel Consumption : 1 l/hr

Model No.: TP175006
Engine Type: 4-Stroke, OHV, Air-Cooled
Displacement: 420 ml (cc)
Max Output: 7.5 kW (7500W)
Rated Output: 6.0 kW (6000W)
Rated Speed: 3000 RPM
Rated Voltage: 220–240 V
Rated Frequency: 50 Hz
Ignition System: T.C.I
Starting System: Recoil + Electric Start
Alternator Type: 100% Copper Coil Alternator
Fuel Tank Capacity: 25 Liters

The TOTAL 7.5kW Gasoline Generator TP175006 is a high-capacity, heavy-duty power backup system built for demanding residential, commercial, and industrial applications. Powered by a high-displacement 420cc 4-stroke OHV air-cooled engine running at 3000 RPM with a T.C.I ignition system, this generator produces a massive peak output of 7.5 kW (7500W) and a continuous rated power output of 6.0 kW. It utilizes a 100% copper coil alternator to deliver superior conductivity, excellent thermal stability, and long service life. Featuring key-operated Electric Start alongside a manual Recoil backup, an extra-large 25-liter fuel tank for extended operation, and a rugged frame equipped with an auxiliary handle and heavy-duty wheel kit, this 86 kg generator ensures mobile and reliable power supply wherever heavy loads are needed.

Features

100% Copper Coil Alternator: Premium copper windings provide maximum electrical efficiency, stable voltage control, and long-term endurance under heavy loads.
Dual Starting Mechanism: Key-turn electric start system supported by a manual pull-recoil mechanism for effortless ignition.
High-Displacement 420cc OHV Engine: Powerful 4-stroke air-cooled engine delivers smooth, fuel-efficient 220–240V AC output without oil-gas mixing.
Large 25-Liter Fuel Tank: High fuel capacity supports long continuous runtimes during prolonged blackouts or heavy job-site operations.
Integrated Wheel & Auxiliary Handle Kit: Heavy-duty protective steel cage with rugged wheels and collapsible handles for easy mobility across job sites.

Applications

Whole-House Backup Power: Runs heavy household loads including multiple split air conditioners, large refrigerators, water pumps, televisions, and entire lighting circuits during power cuts.
Industrial & Construction Sites: Operates heavy-duty power tools, air compressors, arc welders, concrete mixers, and site floodlights.
Commercial Establishments: Provides reliable standby power for offices, retail stores, food trucks, outdoor events, and agricultural pumps.

Usage

Oil & Fuel Setup: Fill standard 4-stroke engine oil into the crankcase reservoir and add clean unleaded gasoline into the 25-liter fuel tank.
Placement: Position the generator outdoors on a flat, level surface away from enclosed spaces, open windows, and combustible materials.
Pre-Start Preparation: Connect the battery terminals for electric start, open the fuel valve lever to "ON", switch the engine toggle button to "ON", and pull the choke lever.
Engine Startup: Turn the key switch to start the 420cc engine (or pull the recoil rope firmly if starting manually), then push the choke lever back to the run position once started.
Connecting Equipment: Allow the engine to warm up for 1–2 minutes, then plug your 220–240V AC high-wattage equipment into the panel outlets.
