Brand: KBS

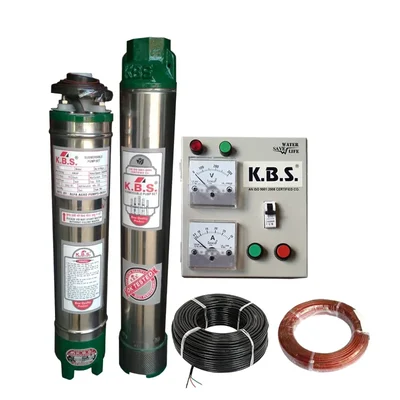

KBS 1.5 HP 15 Stage(3 inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30M Submersible Cable, Safety Wire & 1 Year Warranty
SKU: TI-K1-16870
13 people have bought this recently
Delivery By: Dec 9 - Dec 11
MRP : ₹10860 ₹8629
21% OFF!
13 people have bought this recently Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹8629 (Including GST)
MRP : ₹10860
21% OFF!
Get Extra ₹129 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
KBS 1.5 HP 1 Phase 15 Stage Submersible Pump With Control Panel
180Ft. Max. Head, 70 LPM Max. Flow Rate
3 inch Bore, V3 Type
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specifications
- Brand: KBS
- Power : 1.5 hp
- Weight (Approx.) : 18.5 kg
- Flow Rate : 70 lpm
- Head : 54.86 meter
- Product Type : Submersible Pump
- Brand : KBS
- Wattage : 1.1 kW
- Supply Voltage : 150-240 Volt, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- No Of Stages : 15 Stage
- Pump Type : V3 Type
- Suitable Bore Size : 3 inch (75 mm)
- Cora : 3
- Max. Head Range : 180 Ft. (54.86 Meter)
- Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
- Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
- Stamping : 200 mm
Material Of Construction :
- Motor Body : Stainless Steel
- Pump Bowl : PVC
- Motor Shaft : Steel
- Thrust Bearing : Carbon Vs Stainless Steel
- Rotor : Die Cast
Description
A Water Cooled Submersible Pump is fully submerged in the fluid it pumps, and its motor is cooled by the surrounding water, eliminating the need for external cooling. This design makes it highly efficient, quiet, and prevents overheating, ideal for deep wells, boreholes, and other applications where the pump is constantly immersed.
Features
:- Corrosion resistant stainless steel body
- Specially designed for low voltage working
- High Electrical and Mechanical efficiency
- Higher heat dissipation
- Dynamically balanced rotor and other rotating parts for uniform clearance
- Specially designed bearing to withstand axial thrust loads
- Designed for high voltage fluctuation
- High efficiency, low power consumption.
- Thrush Bearing
Accessories
:- Control Panel
- 30 Meter Submersible Cable
- Safety Wire
Applications
:- Drinking water supply. Domestic & community water supply.
- Drip irrigation, Sprinkler irrigation and gardening.
- Housing-Complexes, Hospitals, High rise building.
- Fire fighting, Landscaping, Fountains, Service stations.
- De-watering of mines, Cooling water circulation and Booster application.
Warranty :
- Submersible Pump Warranty : 1 Year Warranty on Manufacturing Defects.
- Accessories Warranty : NO Warranty on the accessories.
Warranty Terms :
- Dry Run Accidental Damages Are not covered in the warranty
- For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
- You have to send the product to the sellers warehouse.
- Buyer has to bear the courier charges of both side for sending the product.
