Brand: Generic ( Made in India )

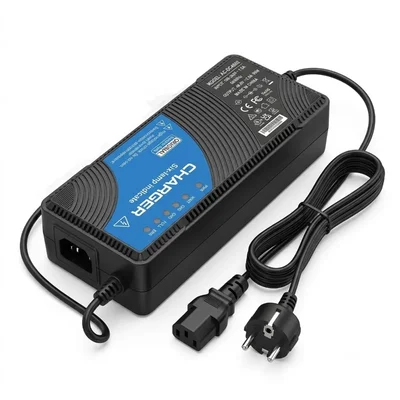

Premium Quality 72V 4A 84V Max Output Electric Vehicle Intelligent Lead Acid Battery Charger Six-Lamp Indicate Auto Shut-Off
SKU: TI-PQ-88024
Estimated Delivery By: Sep 29 - Oct 1
MRP : ₹1400 ₹1035
26% OFF!
Estimated Delivery By: Sep 29 - Oct 1 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹1035 (Including GST)
MRP : ₹1400
26% OFF!
Get Extra ₹16 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
This 72V 4A Generic Electric Vehicle Intelligent Lead Acid Battery Charger delivers a maximum output voltage of 84V from a 220V~50Hz supply.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Battery Type: Lead Acid Battery
- Nominal System Voltage: 72 V
- Charging Current: 4 A
- Max Output Voltage: 84 V
- Input Voltage & Frequency: 220V~50Hz
- Display / Indicator: Six-lamp LED level indicator (20%, 40%, 60%, 80%, 100%)
- Safety Feature: Automatic shut-off feature
Description
The Generic Electric Vehicle Intelligent Charger is designed for charging 72V lead-acid battery packs used in electric scooters and vehicles. Powered by an input voltage of 220V~50Hz, this intelligent charger delivers a 4A current output with a maximum output voltage of 84V. It features a six-lamp LED indicator layout to display real-time battery charge levels (20%, 40%, 60%, 80%, and 100%) and comes with an automatic shut-off feature to prevent overcharging once full capacity is reached. Built for safety and convenience, it includes integrated AC power input and DC output cables for reliable daily electric vehicle charging.
Features
:- Battery Compatibility: Designed specifically for charging 72V lead-acid rechargeable battery packs.
- Six-Lamp LED Indicator: Features a clear six-lamp display indicating 20%, 40%, 60%, 80%, and 100% battery charge levels.
- Automatic Shut-Off Feature: Includes an integrated automatic shut-off feature to safeguard the battery when fully charged.
- 84V Max Output: Delivers a maximum output voltage of 84V at 4A current output.
- Integrated Cabling: Equipped with an AC power input cord and a DC output connection cable.
Applications
:- Charging 72V lead-acid battery systems in electric vehicles and electric scooters
- Maintaining battery power in well-ventilated charging areas
Usage
:- Connect the charger's output connector to the 72V lead-acid battery port of the electric vehicle before connecting to the mains.
- Plug the AC power cable into a standard 220V~50Hz wall socket in a well-ventilated area.
- Observe the six-lamp LED indicator lights to monitor the charge progression up to 100%.
- Disconnect the AC power supply before disconnecting the charger from the battery once charging is complete.
