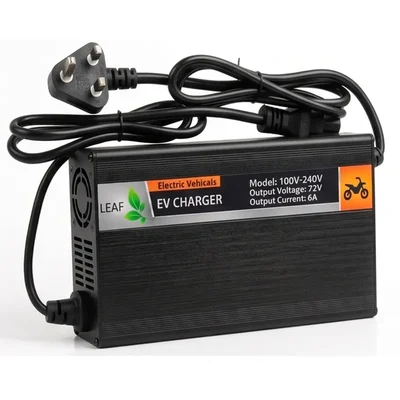

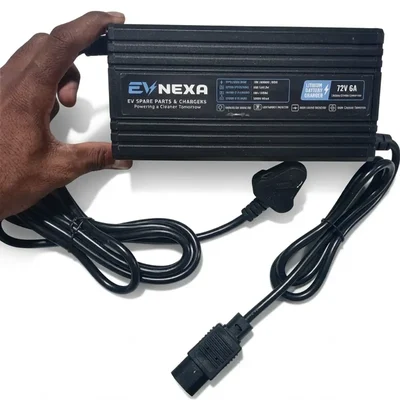

Premium Quality 72V 6A Lithium Battery Charger for Electric Scooters with Smart Overcharge Protection

This Premium Quality 72V 6A smart charger provides rapid, safe charging for electric scooters and e-bikes utilizing 72V lithium battery setups. Featuring integrated overcharge protection and real-time LED status updates, it ensures your vehicle stays powered efficiently while extending overall battery life.

• Input Voltage: 180V - 240V AC, 50/60 Hz

• Output Voltage: 72V Nominal (84V Max Cut-off for Lithium-ion packs)

• Output Current: 6 Ampere

• Battery Compatibility: Lithium-ion / LiFePO4 packs

• Cooling System: Passive/Active internal heat management

• Enclosure Material: High-grade impact-resistant shell

Features

• Intelligent Fast Charging: Delivers a stable 6A current to quickly juice up 72V lithium-ion battery packs.

• Smart Multi-Stage Profile: Automatically transitions from constant current to constant voltage, reducing cell stress.

• Advanced Protection Suite: Built-in safeguards against short-circuits, over-voltage, over-current, and reverse polarity.

• Robust Thermal Management: Features an optimized internal cooling layout to manage heat effectively during peak charging.

• LED Status Indicators: Clear visual feedback shows you exactly when the battery is actively charging and when it hits 100% capacity.

Applications

• Electric Scooters: Ideal for commuter and high-performance 72V e-scooters.

• Electric Bikes & Motorcycles: High-current output suited for larger 72V e-bike battery packs.

• Custom EV Projects: Perfect for DIY electric vehicle builds requiring a steady 72V lithium power source.

Usage

• Ensure your electric vehicle is powered off before connecting the charger.

• Plug the charger's output connector securely into the vehicle’s charging port.

•  Connect the AC power plug into a standard wall outlet and switch it on.

• Monitor the LED light; it will turn from red (charging) to green once fully charged.

•  Disconnect the AC plug from the wall first, then unplug the charger from the vehicle.

Maintenance

• Keep the charger clean and free of dust by wiping it with a dry cloth when unplugged.
• Always store it in a cool, dry place away from direct sunlight, moisture, and liquids.
• Avoid dropping the unit or tightly wrapping the cables, as this can cause internal wiring strain over time.
