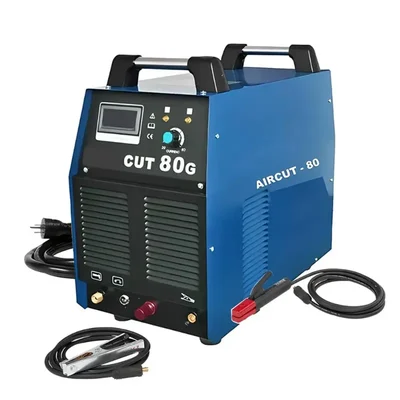

Heavy Duty 80 Amp Air Plasma Cutter Welding Machine, with Standard Accessories

• Model No. : CUT80G
• Base Material : Carbon steel , Stainless steel, low - alloy steel
• Input Power Supply : 380-415 V AC ± 10 %
• Electricity Connection : Three Phase
• Frequency : 50 Hz
• Rated Input Current : 14 A
• Rated Input Power : 11.2 kVA
• No Load Voltage : 320 V
• Current Adjust Range : 20 - 80 A

• Duty Cycle : 60 %

• Efficiency : 85 %

• Power Factor : 0.93
• lnsulation Class : H

• Protection Grade : IP23

• Machine Cooling Mode : Air Cooled
• Cutting Thickness : 1 - 18 mm
• Cutting pressure : 3 - 6 kg/cm
• Switching Device : IGBT
• Overall Dimension : (550 x 290 x 545) mm

Features

• Inverter Technology
• Low-cost cutting with high stable and stiff arc, which brings you smooth cutting and a small cutting angle
• Pilot Arc 5tart increases cutting efficiency.
• Conveniently and quickly cut metal plate.
• Built-in air filter and regulator.
• Equipped with over/under voltage, as we as insufficient compressor air pressure protection.

• Smooth cutting surface with high cutting speed.

• Widely used in cutting carbon steel, stainless steel, copper, cast iron and aluminium, etc

• Strengthened protection on the cutting torch connector largely enhances the operator's safety.

• lnternational Standard IEC 60974-1& ISO 9OO1:2015 Certified


Accessories

• Electrode Holder
• Earthing Clamp
• Operator's Manual
