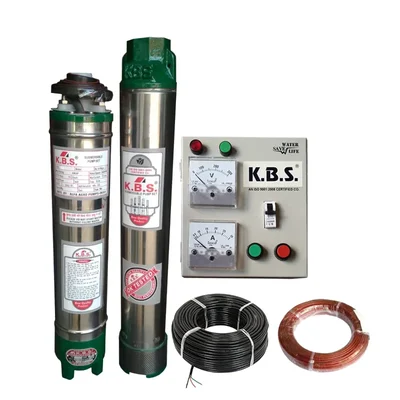

KBS 1.0 HP 15 Stage(4 inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30M Submersible Cable, Safety Wire & 1 Year Warranty

Brand : KBS

SKU : TI-K1-12960

MRP : ₹13500

₹9610

29% OFF!

19 people have bought this recently

Get Extra ₹144 OFF on Prepaid Orders

Delivery By: Jul 20 - Jul 22

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

KBS 1.0 HP 1 Phase 15 Stage Submersible Pump With Control Panel

300Ft Max. Head, 80 LPM Max. Flow Rate

4 inch Bore, V4 Type

1 Year Warranty

SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.

Country of origin: India

Specification

Brand: KBS
Power : 1 hp
Weight (Approx.) : 14.4 kg
Flow Rate : 80 lpm
Head : 91 meter

Product Type : Submersible Pump
Brand : KBS
Wattage : 0.75 kW
Supply Voltage : 150-220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 15 Stage
Pump Type : V4 Type
Suitable Bore Size : 4 inch (100 mm)
Cora : 2
Max. Head Range : 300 Ft. (91 Meter)
Max. Flow/Discharge Rate : 80 LPM (4800 LPH)
Pipe Size (Suction x Delivery) : 25x25 mm (1 x 1 inch)

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Copper
Pump Bowl : Noryl (lvory)
Impeller : Noryl (lvory)
Motor Pipe : Stainless Steel
Bearing Bush : Leaded Bronze
Motor Shaft : SS-410
Thrust Bearing : Carbon Vs Stainless Steel
Stamping : CRNGO
Rotor : EC Grade Copper Conductor
Housing/Base/Connection Piece : CI (Grade FG-200/FG-220)
Suction/Outlet : CI (Grade FG-200/FG-220)
Diffuser : Noryl (Engineering Glass Filled)
Pump Shaft : SS-410
Pump Pipe : Stainless Steel

Description

A water-cooled submersible pump is designed to operate fully submerged in a fluid, with its motor's heat dissipated directly into the surrounding pumped liquid, ensuring continuous and efficient operation. These pumps are extensively used for domestic, agricultural, and industrial water supply, dewatering, and wastewater management, especially where reliable and continuous pumping from submerged sources is required.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption.

Accessories

Control Panel
30 Meter Submersible Cable
Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.
