Brand: HPM

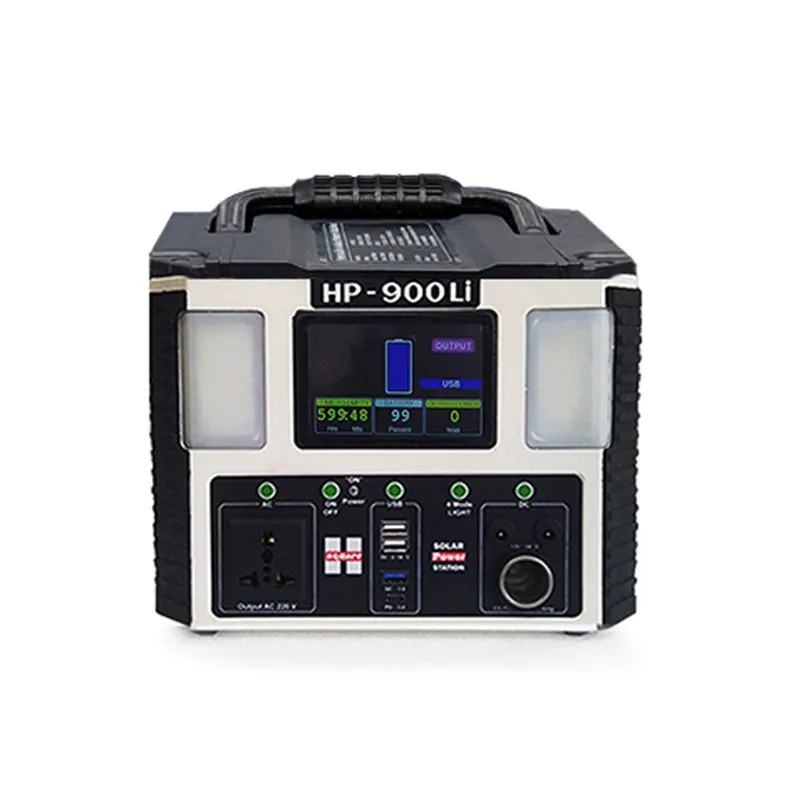

HPM 800 VA Solar Power Station with In-built Lithium Battery, 1 Year Warranty (HP-900Li)
SKU: TI-H8-22510
₹48500 (Including GST)
MRP : ₹72000
Get extra ₹728 Discount (On Checkout)
Delivery By: May 24 - May 26
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 800 VA Solar Power Station
With In-built Lithium Battery
1 Year Warranty
Country of origin: India
Description
This is a portable multi-functional power source AC -230V & DC 5V-20V, that can store energy with its Lithium-Iron-Phosphate battery pack and can power many kind of electric devices simultaneously by its various output Sockets, such as AC-230 V socket, A type USB (2 Nos.), USB QC 3.0, Type ‘C’ USB, 12V DC socket 5521 (2Nos.), 150 Watt CG port.
Specification
:- Brand: HPM
- Weight (Approx.) : 10.5 kg
- Model No. : HP-900Li
Inverter :
- Battery : Lithium Ion Phosphate LiFePo4
- Type : 32140 (Cylindrical), 3.2V,13 AH
- Battery Voltage : 12.8 V (4S- 4P)
- Peak Capacity : 12.8V - 52AH (666 Wh)
- Single Cell Equivalent Capacity : 208 Ah @ 3.2 V
- Life Cycles : ≥ 2000 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System) : Multiple Safety Protections : Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
- Battery Expansion : Yes, Expandable, can Add 1 Pack 12.8V-70 Ah
- Shelf Life : Charge Every 3 - 6 Months
- Heat Dissipation : Air Cooling (Fan), Aluminium Housing
- IP Rate : IP 32 Protected from Water Spray < 15˚From Vertical
AC 230 Volt Output (Invertor Power Supply) :
- Continues Rated Power Output : 650 W (650 VA)
- Peak Output Power : 800 W (800 VA)
- Voltage & Type : AC-230V, 50Hz, Modified Sine Wave
- THD : < 3% (Full R Load)
- Power Factor : 1 (Unity)
- Over Load : 116% < Load <150% @ 2min 150% < Load <200% @ 10 S
- Power Less (No Load & Turned- Off) : < 10W
- AC Output Back time @ 70% of rated load (VA) : ≥ 1Hours & 10 Minutes
- Max. Efficient (>70% Load) : 90%
- Output Socket : Indian Version AC Socket x 1
DC - Output- 12V- Cigarette Lighter Socket :
- Output Voltage : 12.8 ± 1 V
- Continous Output Current : 12 A (Max. 150 Watt)
- DC Output Over Load Current Protection : Yes >13 A (Disconnected Load Recovery)
- DC Output Short Circuit Protection : Yes (Disconnect Load Recovery)
Other DC Outputs - 5V to 20 V & DC Ports :
- USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
- 12V DC -DC 5521 (2 Ports) : 2 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
- USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
- Type - C USB (4) : 1* 'C' Type - 1* USB C PD 3.0 (60W) 5V 5A, 9V 3A, 12V 1.5A, 15 V 1.5A, 20 V 1.5A
- USB & DC Over Load Current Protection : Yes
- USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
- Illumination / LED Flash Lighting : 2 * 15W (4 Modes: Low, Bright, High Bright, Flash).
LCD - Display :
- Battery Level / Status : Battery Level Shows 10 Segment & Capacity in %
- Working Status : Remaining Working Hours time to Full (Recharging Hours)
- Output / Input Powers : Digital data according to real - time powered electricals*Ac ON/OFF, AC Output Power (W) *DC ON/OFF,DC Output power (W)*DC Charging Input Power (W)
- Button, Ports, Multifunction : Display For all Active Ports, Fan, Over Temp. Overload, Backlight, Battery Failure Alarm, Display Error Codes, Last Charging date
DC - Charging Input Power (4 Way of Recharge)
- AC Wall Charger (Charging From Grid Power) (AC input 120V to 275V) : AC - DC Adapter (CC/CV) - 8mm Port 15V-7A (100 Watt Max.) Charging Time 8 - 9 Hours
- Solar Panel PV Charge : Folding Type 18V/ 6.7 Amps - Max 120 W (60W + 60W),Charging Time 7 - 8 Hours
- Car Charge Input (From Cigarette Socket) : 12 - 14V, 10 Amps Max. Charging Time 5-6 Hours
- LPG / Petrol Genset Charger : 15 V - 30 Amps (500 Watts Maximum) Charging time < 2 Hr.
- Heat Dissipation : Air Cooling (Fan), Aluminium Housing
- IP Rate : IP 32 Protected from Water Spray < 15˚From Vertical
Working Condition :
- Charge Temperature : 0˚C ~ 45˚C
- Operating Usage Temp. : -10˚C ~ 45˚C
- Operation Storage Humidity : 5% ~ 90%
Warranty : 1 Year for Complete Product (Solar Power Station)
Accessories
:- 1 x AC/DC Wall Charger Adapter (100 W)
- 1 x Car Charger (Cigarette Lighter Cable)
- 1 x User Manual
Applications
:- It is widely used for outdoor working, Camping or any emergency Situation that needs electrical supply but without utility / (Grid) Power.
- Drone Smartphone Tablet, Laptop Car Air Compressor, Mini Fridge, Car Fridge, Led Light, Flood Light, Wi-Fi - Router, Vacuum Cleaner, Projector, Coffee Maker, Blender, Cordless Drill, Rice Cooker, Stand Fan, Electric Pan, Speaker, Electric Blanket, Desktop, Tv, Soldering Iron etc.
