Brand: Surya

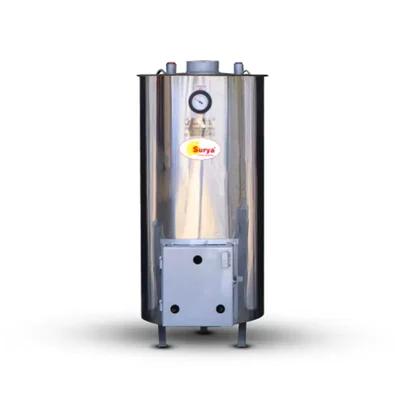

Surya Commercial Grade SS Jacket Vertical Tubular Biomass Wood Fired Hot Water Boiler 80L
SKU: TI-S8-68254
Estimated Delivery By: Apr 15 - Apr 17
MRP : ₹25609 ₹19699
23% OFF!
Estimated Delivery By: Apr 15 - Apr 17 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹19699 (Including GST)
MRP : ₹25609
23% OFF!
Get Extra ₹295 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Surya 80L is a high-efficiency commercial biomass boiler with a mirror-finish SS jacket and MS inner tank. Providing hot water in 10 minutes for up to 8 people, it is a robust, electricity-free solution for lodges, farms, and factories.
Country of origin: India
Specifications
- Brand: Surya
- Model: 80 L
- Capacity: 80 Liters
- Automation Grade: Semi-Automatic
- Heater Type: Vertical Tubular Heater
- Surface Finish: Mirror Polish
- Color: Silver Ash
- Inner Tank Material: Mild Steel (with Rust-proof coating)
- Outer Cover Material: Stainless Steel (SS)
- Inner Tank Thickness: 4 mm & 5 mm
- Outer Tank Thickness: 3 mm
- Installation Sheet: 0.4 mm (430G)
- Working Pressure: 7.5 kg/cm² (Max Endurance 10 kg/cm²)
- Insulation: 50 mm x 32 Density Glass Wool
- Operating Temperature: 60°C (Max 100°C)
- Fuel Consumption: 2.5 kg (at maximum load)
- Total Weight: 68 kg (without water)
- Dimensions: 18-inch Diameter x 3-feet Height
- Inlet/Outlet Size: 3/4 Inch
- Drainage Size: 1 Inch
- Safety Valve / Temperature Port: 1/4 Inch / 1/2 Inch
- Pressure Relief Valve: 1/2 Inch
- Firing Area: 400 cubic inches
- Exhaust Pipe: 8ft Height x 3-inch Diameter
- Occupancy: Suitable for 1–8 Persons per heating cycle
- Space Requirement: 2 x 2 Feet
- Mounting Type: Foot Mounting
Description
The Surya 80L Wood Fired Hot Water Boiler is a high-performance, commercial-grade water heating system that blends cutting-edge architecture with conventional biomass fuel efficiency. This boiler is made to be both durable and aesthetically pleasing, with a sleek Mirror-Finished Stainless Steel outer cover and a heavy-duty Mild Steel inner tank. It makes use of cutting-edge 32-density glass wool insulation to guarantee that the water stays hot for eight to ten hours. It offers an affordable, eco-friendly way to supply hot water in just ten minutes, making it perfect for environments where energy is costly or unavailable. This 80L type provides reliable operation even in hard water circumstances, whether it is used for a large dairy farm or a small resort.
Features
:- Dual Voltage Performance: Completely power-free, resulting in a 100% reduction in monthly utility costs.
- Quick Heating: Reaches a full 60°C in around 30 minutes, delivering hot water in about 10 minutes.
- Superior Insulation: 8 to 10 hours of heat retention are provided by 50mm x 32-density glass wool insulation.
- High Pressure Endurance: Designed to tolerate working pressures of up to 10 kg/cm², tested at 12.5 kg air pressure.
- Hard Water Optimized: The vertical tubular design avoids scaling problems that are typical in hard water regions, in contrast to solar heaters.
- The hybrid build consists of an outside jacket made of stainless steel for longevity and cleanliness and an interior tank made of rust-proof coated mild steel for strength.
- Multi-Floor Connectivity: Capable of providing hot water to two to three rooms on several storeys without the need for a pump.
Applications
:- Small resorts, lodges, guest houses, and homestays are examples of hospitality.
- Agriculture: Chicken farms and dairy farms (for sterilization).
- Industrial: Textile factories, pharmaceutical companies, and food and beverage processing facilities.
- Educational: Two to three room blocks in school and college hostels.
- Residential: Big households need a lot of hot water to bathe.
Usage
:- Fuel Compatibility: Suitable for dry agricultural waste, wood, charcoal, coconut shells, and kernels.
- Cleaning: To provide adequate airflow, clean the ash drawer on a regular basis. Soot accumulation in the exhaust pipe should be removed once a month.
- Keep Dry: To stop external corrosion, keep the outside dry. Shampoos and cleaning supplies should not be kept on top.
- A non-return valve (NRV) should not be fitted. Always use heat-resistant piping close to the outlet and make sure the plumbing is leak-free.
- Flushing: To get rid of bacterial growth or sediment, flush the tank right away if the water smells bad or seems rusty.
- Mixing Ratio: For a suitable bathing temperature, combine 1L of the 60°C hot water with 2L of cold water to maximize utilization.
