Brand: TURTLE

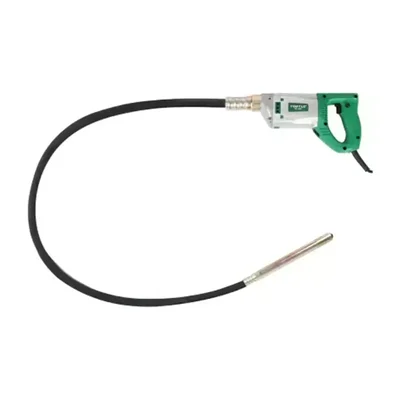

Turtle Gold 2000 W 50 mm Electric Concrete Vibrator (ST-955S) with 2 m Vibrating Needle, 4800 RPM Speed
SKU: TI-TG-52722
Delivery By: Dec 19 - Dec 21
MRP : ₹8500 ₹6732
21% OFF!
Delivery By: Dec 19 - Dec 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹6732 (Including GST)
MRP : ₹8500
21% OFF!
Get Extra ₹101 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Turtle Gold 2000 W 50 mm Electric Concrete Vibrator (ST-955S) with
4800 RPM Speed
2 m Vibrating Needle
Country of origin: China
Specifications
- Brand: TURTLE
- Weight (Approx.) : 12 kg
- Net Quantity : 1 pc
- Rod Diameter : 50 mm
- Model : ST-955S
- Rated Input Power : 2000 W
- No-Load Speed : 4800 RPM
- Frequency : 50 Hz
- Voltage : 220 V
- Needle Length : 1 m
- Needle Diameter : 50 mm
Description
Turtle Gold 2000W 50 mm Electric Concrete Vibrator (ST-955S) is designed for high-capacity concrete consolidation. With its powerful 2000 W motor and 2 m vibrating needle, this tool expertly consolidates concrete up to 2 m depth, ensuring uniform density and strength in construction and infrastructure projects.
Features
:- Compact Power : Features a robust 2000W motor ideal for reliable, medium-duty jobs.
- Optimal Compaction : Delivers 4800 RPM speed for fast and thorough consolidation of concrete.
- Maneuverable Needle : Equipped with a 1-meter flexible shaft and 50mm head, perfect for columns, footings, and restricted areas.
- Enhanced Concrete Quality : Removes trapped air and excess water to boost durability and surface finish.
- Standard Operation : Runs on standard 220V, 50Hz electricity, making it easy to use on site.
Applications
:This concrete vibrator is best suited for :
- Residential Projects : Pouring small slabs, walkways, and patios.
- Columns and Footings : Ideal for vibrating concrete in narrow or vertical formwork.
- Small to Medium Sized Forms : Efficiently compacting concrete where deep penetration is not required.
- Pre-Casting : Ensuring excellent finishes and strength in pre-cast elements.
Usage
:User Instructions :
- Preparation : Ensure the vibrator is plugged into a stable 220V power source. Confirm the 1-meter needle and shaft are securely connected to the motor unit.
- Insertion : Insert the vibrating needle vertically into the fresh concrete. For layered pours, the needle should just penetrate the previous layer for good bonding.
- Vibration : Hold the vibrator in the concrete for 5 to 15 seconds until bubbles stop rising and the surface of the concrete looks smooth and glossy.
- Withdrawal : Withdraw the needle slowly and steadily. This prevents creating voids in the concrete.
- Spacing : Space your insertions to ensure the area of influence overlaps, typically at intervals of 450mm to 750mm.
- Avoidance : Do not vibrate against rebar or formwork, as this can cause damage to both the equipment and the structure.
Maintenance :
- Cleaning : Clean the vibrating needle and shaft thoroughly immediately after use to prevent concrete from hardening on the surface.
- Inspection : Regularly check the short flexible shaft (1m) for any damage, kinks, or tears. Inspect the needle head for excessive wear.
- Lubrication : If the manual specifies, periodically check and re-lubricate the coupling between the motor and shaft to maintain performance.
- Storage : Store the vibrator in a dry, safe location. Never hang the motor unit by the flexible shaft.
- Electrical Safety : Check the power cord and plug for any signs of damage (cuts, fraying) before every use and replace immediately if necessary.
