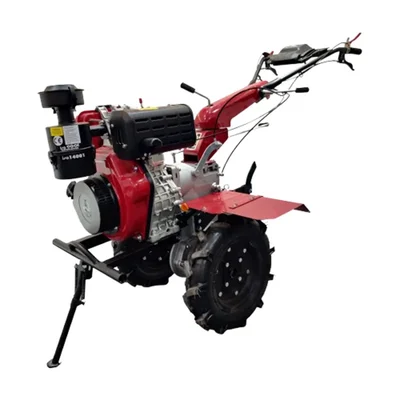

Xtra Power XPW 1150D GOLD, 9HP 4-Stroke Diesel Power Tiller Machine

• Model :  XPW 1150D GOLD
• Engine : 186F
• Transmission : Constant Mesh Gear Drive (2 Forward + 1 Reverse)
• Starting : Recoil
• Fuel Tank Capacity : 5.5 Liters
• Consumption : 650 ML /750 ML / HR
• RPM : 3000
• Driving Mode : Gear
• Gear : 1,0,2,0,R
• Tilling Width : 42 - 53 Inch (106.7 - 134.6 cm)
• Tilling Depth : 6 - 12 Inch (15.2 - 30.5 cm)
• Tyre Size : 5.00 - 12 Inch (12.7 - 30.5 cm) Traction Tires

Features

• High-Torque 9 HP Diesel Engine : The 186F 4-stroke engine delivers massive lugging power for heavy-duty soil penetration.
• Extra-Wide Tilling Path : Covers up to 53 inch (134.6 cm) in one pass, significantly reducing labor time.
• Reinforced Gold Series Gearbox : Full gear-drive transmission ensures smooth power delivery under extreme agricultural loads.
• All-Terrain Versatility : Specialized design performs exceptionally well in both hard dry soil and water-filled paddy fields.
• Ergonomic Heavy-Duty Handles : Adjustable handlebars with vibration-dampening grips provide superior operator control and comfort.

Accessories

• One set of Tyre
• 32 Pcs Blades
• 2 Pcs of Rotary Shaft
• 1 Pc of of Back Rod
• 2 Pcs of Side Disc
• Tool Kit

Applications

• Fluid Check : Fill engine with fresh diesel and recommended 4-stroke engine oil.
• Startup Sequence : Engage the decompression lever and pull the recoil starter firmly.
• Gear Selection : Choose the appropriate gear speed based on soil hardness and depth.
• Blade Operation : Hold handles securely and engage the clutch to begin rotary tilling.
• Directional Control : Guide the tiller steadily along rows for uniform and deep cultivation.

Usage

• Paddy Field Puddling : Prepare water-logged soil for rice transplantation using specialized cage wheels.
• Dry Land Tilling : Break hard-compacted ground for planting seasonal grain and vegetable crops.
• Sugarcane Inter-Cultivation: Effectively remove weeds and aerate soil between tall, wide crop rows.
• Orchard Management : Maintain soil health and control weeds around fruit tree plantations.
• Large Estate Preparation : Quickly pulverize thick vegetation and prep soil for commercial farming.
