Brand: Generic ( Made in India )

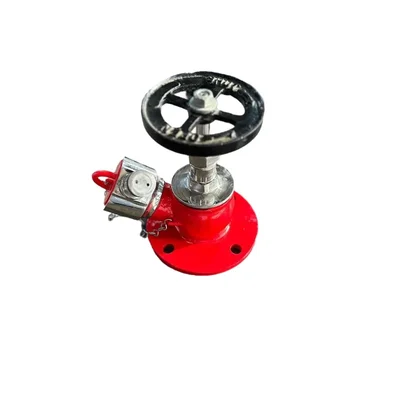

CHANDOKS TYPE-A Fire Hydrant Landing Valve, Stainless Steel (SS) Grade
SKU: TI-CT-51845
Delivery By: Dec 12 - Dec 14
MRP : ₹4500 ₹3127
31% OFF!
Delivery By: Dec 12 - Dec 14 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹3127 (Including GST)
MRP : ₹4500
31% OFF!
Get Extra ₹47 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
CHANDOKS TYPE-A Fire Hydrant Landing Valve, Stainless Steel (SS) Grade
Suitable for mounting on fire hydrant systems, especially for indoor (internal hydrant) use.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 1 kg
- Net Quantity : 1 pc
- Material : Stainless Steel
- Grade : SS304
- Valve Type : A
Description
The CHANDOKS TYPE-A Fire Hydrant Landing Valve in Stainless Steel (SS) grade is an ISI-marked hydrant valve conforming to IS:5290 standards. It typically features a 63mm diameter size with a 3-inch NB flanged inlet designed for a single outlet. The outlet is a female instantaneous type, operated manually via a cast iron handwheel. Constructed from stainless steel (often SS304 grade), this valve is corrosion-resistant, pressure-resistant, and suitable for fire hydrant systems. It comes with a PVC blank cap attached by a chain and is finished with durable paint for enhanced weather resistance. The valve also undergoes hydrostatic testing (e.g., tested at 23 kgf/cm²) and seat tightness testing to ensure water tightness at 14 kgf/cm². It achieves a flow rate of around 900 liters per minute at 7 kgf/cm² pressure, making it efficient for firefighting applications.
Features
:- Conforms to IS:5290 Type-A specification with ISI marking.
- Operation: Manual using a cast iron handwheel.
- Performance: Hydrostatic body test pressure 23 kgf/cm² for 2.5 minutes.
- Water tightness tested at 14 kgf/cm² seat pressure.
- Flow capacity: Approximately 900 liters per minute discharge at 7 kgf/cm² pressure.
- Equipped with a PVC blank cap attached by chain.
- Body surface protected with two coats of durable paint for weather resistance.
- Suitable for mounting on fire hydrant systems, especially for indoor (internal hydrant) use.
- Designed for reliable, easy operation and long service life in firefighting applications.
Applications
:- Mounted on internal risers or external standposts in buildings and industrial fire hydrant networks to deliver high-volume water flow without throttling.
- Used in wet and dry riser systems for high-rise structures, ensuring reliable on/off operation during fire suppression.
- Installed in factories, warehouses, and commercial facilities to connect hoses for rapid firefighting deployment.
- Deployed in oil & gas refineries, chemical plants, and petrochemical complexes due to SS corrosion resistance and high-pressure tolerance up to 21 kgf/cm².
- Applied in power plants, airports, hospitals, and storage facilities for public safety and emergency water supply from hydrant piping.
- Integrated into EV battery plants, pharmaceutical factories, and logistics warehouses for mission-critical fire protection.
