Brand: HT

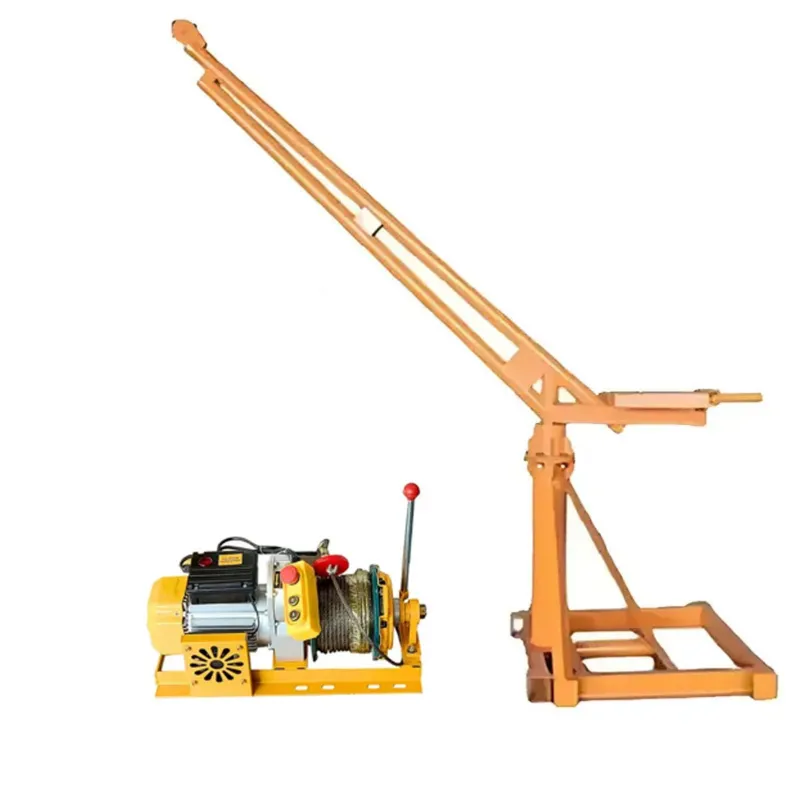

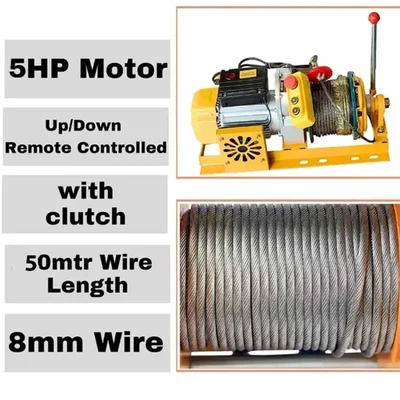

HT 500 kg Load Capacity 360° Mini Crane With Electric Clutch Winch,5 HP & 50-Meter 8 mm Wire Rope
SKU: TI-H5-22637
Delivery By: Dec 12 - Dec 14
MRP : ₹43000 ₹30200
30% OFF!
Delivery By: Dec 12 - Dec 14 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹30200 (Including GST)
MRP : ₹43000
30% OFF!
Get Extra ₹453 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
HT 500 kg Load Capacity 360° Mini Crane
50 Meter 8 mm Wire Rope
5 HP Copper Winding Motor
Single Phase
Application on Industries, Manufacturing Operations & Warehouse etc.
Country of origin: India
Specifications
- Brand: HT
- Power : 5 hp
- Weight (Approx.) : 110 kg
- Load Capacity : 500 kg
Specifications of Mini Crane with Electric Clutch Winch :
- Product Type : Mini Crane with Electric Winch
- Winding : 100% Copper Winding
- Motor : 5 HP
- Phase : Single
- Wire Rope Length : 50 meter
- Maximum Lifting Height : 50 meter
- Rope Diameter : 8 mm
- Load Capacity : 500 Kg
- Boom Length : 300 cm
- Power Source : Electric
- Rated Voltage : 220V
- Rotate : 360°
- Continuous Working Capacity : 2 hrs. (Approx.)
- Lifting Speed : 18 meter/min
- Applications : Lifting
Description
Description of Mini Crane with Electric Clutch Winch :
The 360° Mini Crane Electric Hoist Structure is a device that has been made to function well with little upkeep. Users of the 360° Mini Crane Electric Hoist Structure receive magnetic lifting strength, including the ability for one side to expand and retract utilizing straightforward, user-friendly mechanics.
This machine is small and compact in size.
Easy to operate and can be used in smaller areas.
Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
Features
:Features of Mini Crane with Electric Clutch Winch :
- This machine is small and compact in size.
- Easy to operate and can be used in smaller areas.
- Strong and heavy motor.
- Heavy and Thicker wire rope.
Applications
:- Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
Package contains :
- 1 x Crane
- 1 x Electric Clutch Winch
- 1 x Eye Hook
- 1 x Wire Rope
- 1 x Remote
- 1 x Voltmeter
Note :
- This product comes with a 6-month support assurance. And, we provide after-sales support any time after purchase.
- Video Is Uploaded For Reference Purpose
