Brand: HT

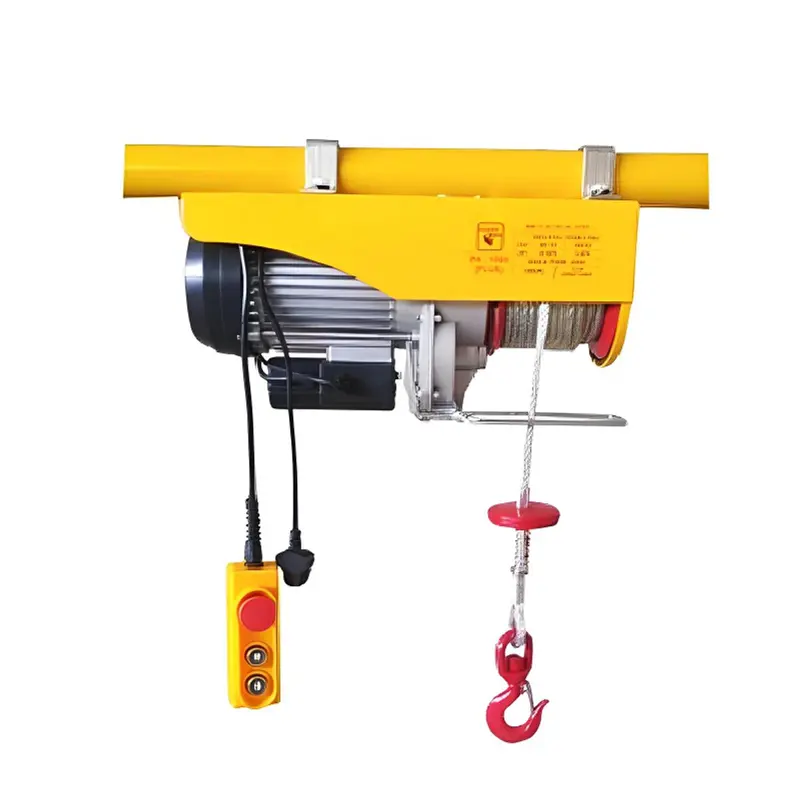

HT PA 500 kg Electric Hoist with 1.5 HP 100% Copper Winding Motor, 5 mm diameter & 20 meter Wire Rope
SKU: SG-PB-2049
51 people have bought this recently
Delivery By: Dec 21 - Dec 23
MRP : ₹11500 ₹7240
37% OFF!
51 people have bought this recently Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹7240 (Including GST)
MRP : ₹11500
37% OFF!
Get Extra ₹109 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
HT 500 kg Electric Hoist ( PA 500 )
Rated Voltage 220V, 50Hz
Input Power : 1050 W
Motor Power : 1.5 HP
Rated Capacity 500 Kg20 m Wire rope, 5 mm diameter
Remote-controlled electric hoist
Country of origin: China
Specifications
- Brand: HT
- Power : 1.5 hp
- Weight (Approx.) : 16.2 kg
- Load Capacity : 500 kg
- Phase : Single
- Product Type : Electric Hoist
- Model Number : PA 500
- Phase : Single Phase
- Winding : 100% Copper Winding
- Working : Remote Controlled
- Rated Voltage : 220V, 50Hz
- Input Power : 1050 W
- Single Hook Load Capacity : 250 kg
- Double Hook Load Capacity: 500 kg
- Lifting speed : Single Hook & Double Hook - 15 m/mins (1500 cm/min)
- Lifting Height : Single Hook - 20m, Double Hook - 10m
- Wire Rope Diameter : 5 mm
- Wire Rope Length : 20 Meter (2000 cm)
- Continuous Working Capacity : 2 hours (Approx.)
Description
- The raising, lowering, and transferring of objects and goods is done with the use of material handling equipment called electric hoists. They are mounted above the ground, and an electric motor drives them. Electric wire rope and chain hoists are the two primary varieties of electric hoists.
- Mini Electric Hoist 250/500kg with Double Hook is capable of lifting 500kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.
Features
:- With an emergency stop switch
- Reinforced breaking switch with position limit
- Protection class up to IP54
- With a thermal prevention device
- Compact and small size design
- Long life span and high efficiency
- Applicable for most industry, business, handicraft industry and service industry
- Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane
Applications
:- Warehouses, automotive servicing, machine shops, manufacturing facilities, factories, building sites, and railroad construction.
In The Box :
- 1 Electric Hoist.
- 1 Electric Hoist Remote.
- 1 Eye Hook.
- 1 Pulley Hook.
- 20-meter Wire Rope.
- Mounting Case
- Nut bolts and Clamps
Note :
- All these accessories are assembled with the machine.
- The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.
