Brand: ASPEE
ASPEE PS/16, High Pressure Triple Piston HTP Pump For Agricultural Spraying
SKU: TI-AP-25306
2602 people have viewed this recently
Estimated Delivery By: May 10 - May 12




MRP : ₹24500 ₹20999
14% OFF!

2602 people have viewed this recently
Estimated Delivery By: May 10 - May 12
Easy Return
& Refund
& Refund

Quality
Assurance
Assurance

Trusted
Delivery
Delivery

After Sales
Assistance
Assistance

Buyer
Protection
Protection
₹20999 (Including GST)
MRP : ₹24500
14% OFF!
Get Extra ₹315 OFF on Prepaid Orders
QTY :
-
1
+
Short Description

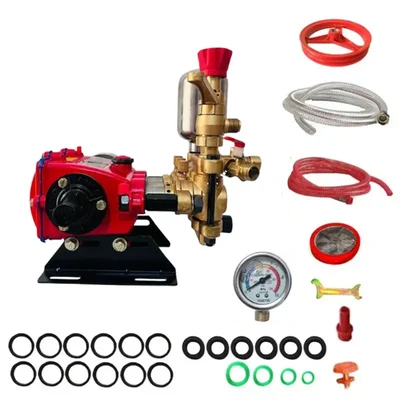

ASPEE PS16, Triple Piston HTP Pump Without Motor
3 Piston, 36 LPM Capacity
400 PSI Max. Pressure
For Agricultural Spraying
Country of origin: China
Specifications
- Brand: ASPEE
- Weight (Approx.) : 12 kg
- Model Code : PS16
- Material : Brass
- Pump Revolution : 950 rpm
- Model: PS/16
- Suction capacity: 36 ltr / min
- Normal working pressure: 100 - 200 PSI (7 – 14 bar)
- Max. pressure: 400 PSI (28 bar)
- Pump revolution: 950 rpm
- Power required: 3 hp
Note : Colour of the Product may Vary
Description
Introducing the "ASPEE PS16 without Motor/Engine" a powerful and efficient solution for all your fluid transfer needs. Engineered with precision and durability, this high-quality pump delivers exceptional performance without the added weight and complexity of a built-in motor. Designed for versatility, the HTP Pump is compatible with a wide range of power sources, allowing you to seamlessly integrate it into your existing setup. Boasting a robust construction and reliable operation, this pump is the ideal choice for industrial, agricultural, and commercial applications. Whether you're transferring liquids, chemicals, or even viscous fluids, the HTP Pump ensures a smooth and controlled flow, making it a must-have addition to your toolbox. Order yours today! ASPEE – HTP horizontal triplex piston power spraying unit, developing 450 PSI (28 BAR) pressure and giving free discharge off 36 lpm at 950 rpm. Supplied with pulley, pressure vessel, pressure gauge, by pass cum pressure regular valve (CVA), 3 meter long bypass hose & suction hose with strainer, couplings for delivery hose.
Features
:- Heavy duty & efficient sprayer
- Triplex stainless steel piston and oil bath lubrication
- Develops 400 psi pressure
- Discharge capacity is 36 lit per minute at 950 rpm
- Provided with coupling set
- Convenient to spray with 4 spray Gun at a time
Accessories
:- Suction Pipe
- Overflow Pipe
- Toolkit
- Filter & Accessories
- Pulley
Applications
:- Suitable for large spraying operations in orchards, coffee & rubber plantations & irrigation
Usage
:- Step 1 : Attach the inlet pipe, overflow pipe, hose pipe, motor or engine with HTP pump
- Step 3 : Connect with electricity if mounted with motor or pour the fuel in fuel tank if connected with the engine
- Step 4 : Now add engine oil in engine oil chamber accordingly and start the engine
- Step 5 : Be sure about safety precautions
- Step 6 : Do your work as per your needs
Always refer to the manufacturer's instructions and safety guidelines when operating an HTP pump without a motor.
