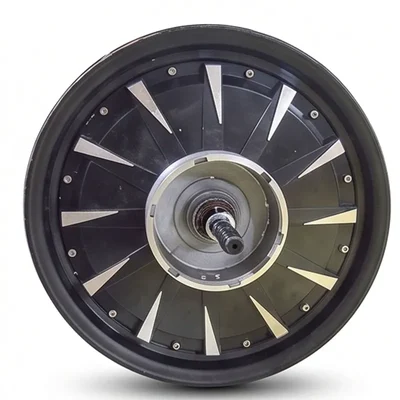

Premium Quality Hub Motor 10 Inch 1200W 48V-60V High Torque Wheel Motor for Electric Scooter and EV Conversion

Upgrade or build your electric ride with this high-performance Premium Quality 10-Inch 1200W BLDC Hub Motor. Engineered for seamless dual-voltage compatibility with 48V and 60V systems, this outer-rotor wheel motor delivers impressive torque and acceleration without the noise or maintenance of chain drives. Featuring a robust, weather-sealed IP67 enclosure and a built-in 110mm drum brake, it provides reliable stopping power and smooth performance in tough urban environments. It is the definitive power solution for high-speed electric scooters and lightweight custom EV conversion builds.

• Motor Type: Brushless DC (BLDC) External Rotor Hub Motor

• Motor Size / Rim Size: 10 Inch (Rim width: 2.15")

• Weight: 8.8 kg (19.4 lbs)

• Dimensions: 25.4 x 25.4 x 18 cm

• Rated Power: 1200 W

• Peak Power: 1800 W

• Operating Voltage: 48V / 60V Dual Voltage Compatible

• Maximum Speed: 45 km/h-55 km/h (depending on load and configuration)

• Rated Torque: 25 Nm – 45 Nm

• Maximum DC Current: 42 A

• Efficiency: ≥ 85%

• Brake Type: 110mm Integrated Drum Brake Cover

• Sensor Type: Dual Hall Sensors

• Ingress Protection (IP): IP67 Water and Dust Resistant

• Material / Build: Premium Aluminum Alloy Housing with Pure Copper Windings

• Loading Capacity: Up to 150 kg (Single Wheel) / 300 kg total vehicle load

• Power Source: External Lithium-Ion or LiFePO4 Battery Pack (via 3-Phase BLDC Controller)

The Premium Quality 10-Inch 1200W Brushless DC Hub Motor bridges the gap between raw power and efficient engineering, making it a stellar drop-in component for modern electric micro-mobility. By locating the motor directly inside the wheel hub, this design completely eliminates complex mechanical drivetrains, chains, and belts, resulting in near-silent operation and vastly reduced wear over time. Constructed with a heavy-duty aluminum alloy casing and high-density pure copper windings, it handles intense thermal loads and prolonged high-current operation with ease.

Navigating varying terrain and unpredictable weather becomes effortless. Dual Hall sensors ensure ultra-precise motor timing for jerk-free acceleration from a dead stop, while the dual-voltage flexibility allows builders to optimize their battery architecture for either extended range or maximum top speed. Its fully sealed IP67 assembly protects delicate internal components against water submersion and dust intrusion, ensuring a dependable daily commute through rainfall or dusty paths.

Features

• 1200W High-Efficiency BLDC Output: Delivers instantaneous acceleration and a top speed capability of up to 55 km/h with low heat generation.

• 48V/60V Dual-Voltage Integration: Adapts seamlessly to multiple battery architectures, letting you choose between maximum efficiency or higher peak velocity.

• Integrated 110mm Drum Brake Cover: Guarantees reliable, highly responsive stopping power integrated cleanly into the wheel architecture.

• Dual Hall Sensor Technology: Synchronizes motor phases flawlessly with your controller to produce smooth, stutter-free low-speed torque.

• IP67 Waterproof & Dustproof Shielding: Keeps the motor running reliably through deep puddles, wet commutes, and gritty off-road environments.

• Pure Copper Windings & Die-Cast Alloys: Lowers internal electrical resistance and maximizes heat dissipation for a significantly extended motor lifespan.

Applications

• High-Performance Electric Scooters: Functions as a premium replacement motor to boost the speed and hill-climbing capabilities of standard e-scooters.

• Gas-to-Electric EV Conversions: Ideal for retrofitting popular 10-inch wheel gas scooters (such as commuter mopeds) into clean, zero-emission electric vehicles.

• DIY Custom Electric Transports: Provides a heavy-duty, plug-and-play driven wheel asset for student engineering projects, custom Go-Karts, and robotics platforms.

• Light Commercial Cargo Trikes: Serves as a reliable drive hub for compact, multi-wheel urban delivery carts and light material-handling vehicles.

Usage

Maintenance

• Routine Fastener Checks: Regularly inspect and retighten the axle nuts and mounting bolts to ensure the high-torque vibrations haven't loosened the wheel assembly.

• Cable & Harness Inspection: Periodically check the main wiring harness and Hall sensor cables for signs of fraying, cracking, or heat damage, especially near the axle exit point.

• Brake Wear Assessment: Monitor the thickness of the 110mm drum brake shoes and adjust the tension cable as needed to maintain crisp, reliable stopping power.

• Bearing Lubrication: Keep the internal wheel bearings free of debris and listen for grinding noises; replace or lubricate the bearings immediately if friction increases.

• Rim & Structural Inspections: Check the 10-inch aluminum alloy rim for dents, cracks, or warping after riding over harsh potholes or rough terrain to prevent tire deflation.

• Moisture Management: While the motor features an IP67 rating, avoid using high-pressure power washers directly on the axle seals and wire entry points to prevent long-term moisture ingress.
