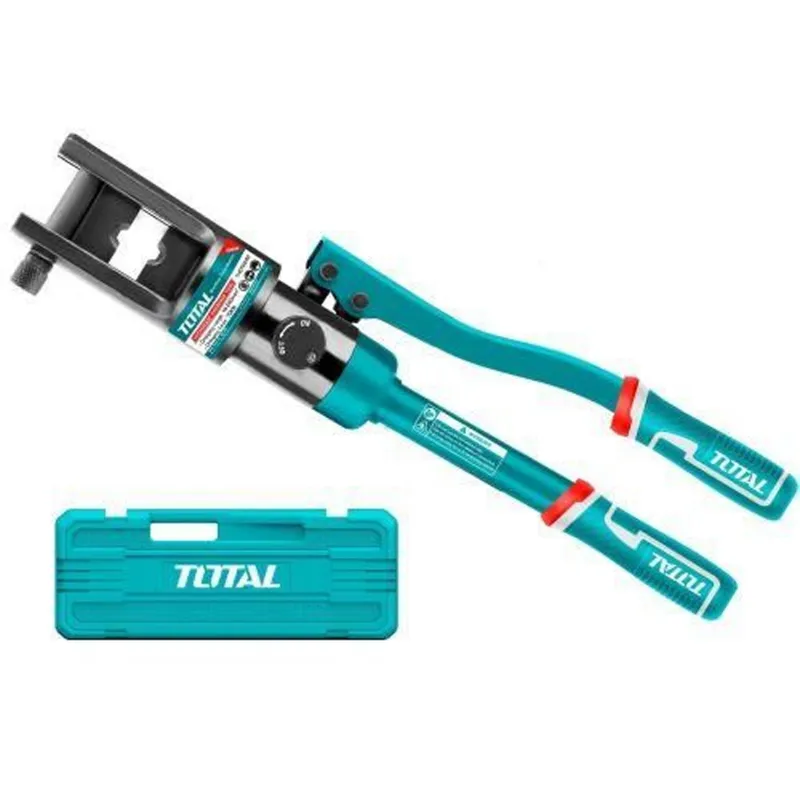

The heavy-duty Total Cu 16-240 mm2 70 KN Hydraulic Crimping Tool is made to crimp copper wires and cables precisely and effectively. This hydraulic crimping tool is perfect for demanding electrical and telecomunications applications because of its strong design, large crimping range, and high crimping force. The crimping tool is specifically made to accommodate a wide range of copper wire sizes, with a crimping range of Cu 16-240 mm2. It ensures safe and dependable connections with its remarkable 70kN crimping force. Hex crimping is the form of crimping that is utilized; it is renowned for producing crimps that are robust and long-lasting. With its 18 mm stroke length, the tool enables reliable and effective crimping.

Features

• Best Quality
• Easy To Use
• Packed By BMC

Specification

• Model No : THCT0240
• Product Type :  Hydraulic Crimping Tool
• Crimping Range：Cu 16-240 mm²
• Crimping Force : 70 kN
• Crimping Type : Hexagon
• Crimping Stroke : 18 mm
• Length : 475 mm (Approx.)

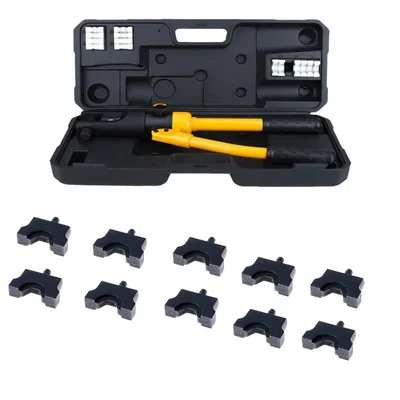

Accessories

• Crimping dies (16,25,35,50,70,95,120,150,185,240mm2)
• Sealing O-ring One Set
