Brand : Taparia

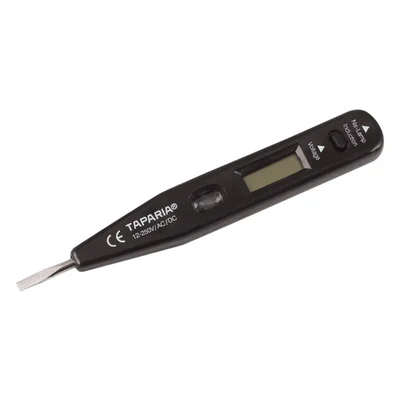

TAPARIA 130mm 12V-220V Measuring Range Multi-Purpose Digital Tester (MDTN-82)
SKU : TI-T1-49189
MRP : ₹300
₹250
17% OFF!
-
1
+
Get Extra ₹4 OFF on Prepaid Orders
Delivery By: Nov 21 - Nov 23
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
TAPARIA 130mm 12V-220V Measuring Range Multi-Purpose Digital Tester
Country of origin: India
Specification
  • Brand: Taparia
  • Weight (Approx.) : 100 gm
  • Net Quantity : 1 pc
  • Model : MDTN-82
  • Measuring Range : 12V to 220V (AC & DC)
  • Blade Material : Chrome Vanadium Steel
  • Blade Hardness : 54–58 HRC on the tip
  • Tip Size : 3.0 mm × 0.5 mm
  • Blade Finish : Bright Nickel-Chrome Plating
  • Length : 130mm
  • Body Material : ABS Plastic
  • Display / Indicator : Digital LCD
  • Functions : Voltage measurement (12–220 V AC/DC), Locate break in insulated wire externally, Detect current flow in insulated wire externally
  • Special Feature : Includes Neon Bulb Version For Additional Live-Line Indication.
Description
  • The Taparia MDTN‑82 is a compact, multi-purpose digital line tester. It is capable of measuring both AC and DC voltages in the range of 12 V to 220 V. It also helps identify the break-point in insulated wires and detects current flow through wires externally, making it a versatile tool for electricians and DIY users.

Applications

 :
The Taparia MDTN‑82 digital tester is useful in many practical situations :

Voltage Measurement :
  • To check AC or DC voltage in circuits from 12 V to 220 V.

Fault Detection in Insulated Wires :
  • To locate a break or discontinuity inside an insulated wire without stripping the insulation.

Current Flow Detection :
  • To externally check whether current is flowing through an insulated wire, which is very helpful in diagnosing wiring problems.

Electrical Maintenance & Safety Checks :
  • Useful for electricians doing regular wiring inspections or troubleshooting.
  • Beneficial for DIY users who want to verify live vs neutral and ensure circuits are safe before working.

Low Voltage Work :
  • Since it works from as low as 12 V, it can be used for automotive, battery-powered or solar circuitry checks, not just mains.


Usage

 :
Maintenance / Care Tips :

To keep the MDTN‑82 tester reliable and safe over time, follow these maintenance practices :

Storage :
  • Store in a clean, dry place to protect the electronic circuit and the display.
  • Avoid leaving it in very hot or humid environments.

Cleaning :
  • Wipe the blade with a dry or slightly damp soft cloth after use.
  • Make sure the tester is completely dry before using it again (especially the digital circuit).
  • Avoid using harsh chemicals or solvents on the ABS plastic body.

Inspection Before Use :
  • Check the blade for signs of wear or damage.
  • Inspect the body / casing for cracks.
  • Make sure the LCD screen is working properly; look out for dim or flickering display which could indicate low battery.

Battery Management :
  • Replace the internal battery if the screen dims or readings become erratic. (Refer to the user manual or packaging for the correct battery type.)
  • If storing the tester for a long period, remove the battery (if removable) to prevent leakage.

Safe Usage Guidelines :
  • Use within the specified 12–220 V range; do not subject it to higher voltages than it is rated for.
  • Avoid using it as a heavy-duty screwdriver — it's primarily a testing instrument.
  • Do not drop the tester from height; while ABS is durable, repeated shocks may damage the internal electronics.
