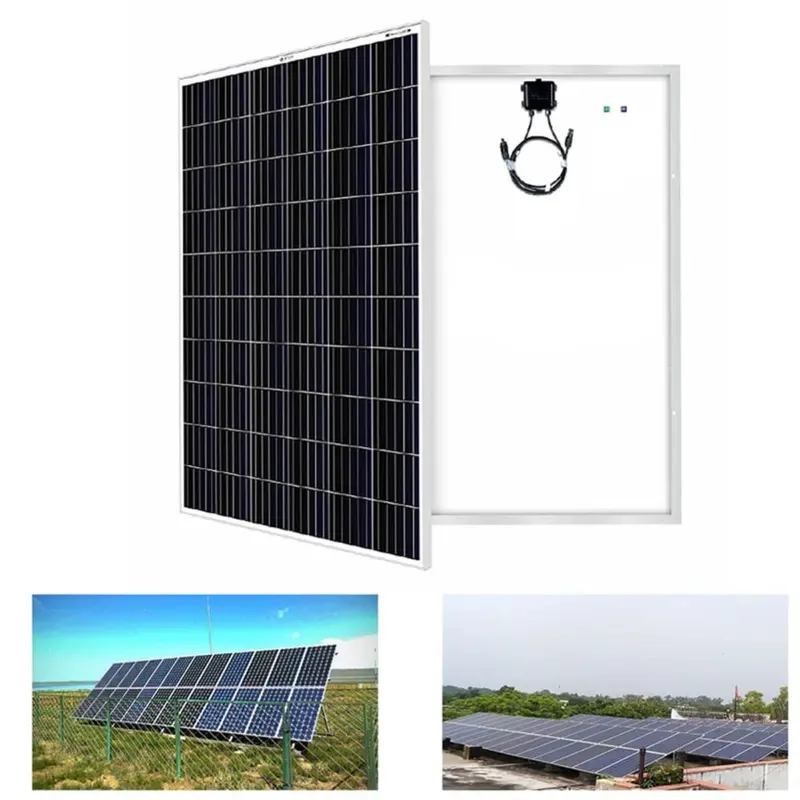

185 Watt Mono PERC Solar Panel
With 36 Cells , High Efficiency Solar Panel
High Performance and
Easy to Install, long lasting Solar Panel
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : GRAMSTRONG
Gramstrong 185 Watt Mono PERC Solar Panel of 36 Cells for Commercial and Industrial Purpose
SKU : TI-G1-34853
MRP : ₹8000
₹6500
19% OFF!
-
1
+
2561 people have viewed this recently
Delivery By: Jun 4 - Jun 6
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: China
Description
This Product is Built with Heavy-duty silver anodized aluminum frame and tempered glass. Long Lasting, High Efficiency and Excellent low light performance. This efficient solar panel reduced electricity bills, maximized power generation, better performance in hot climates, low maintenance cost, high durability and diverse applications.
Features
:- Increased module power output.
- Maximum system voltage of 1000 V DC.
- Reduced BOS cost.
- High area efficiency.
- Easy installation & handling for various application.
Specification
:- Product Type: Solar Panel
- Brand: GRAMSTRONG
- Weight (Approx.) : 18 kg
- Number of Cell : 36
- Junction Box : IP 67 rated with 2 bypass diodes
- Superstrate : 3.2 mm high transmission low iron tempered glass
- Cell Encapsulant : PID Free EVA (Ethylene Vinyl Acetate) ‐ FC/UFC
- Back sheet : Composite Film ‐ White (Black & Transparent optional)
- Frame : Silver Anodized Aluminum frame with twin wall profile
- Mechanical Load Test : Sustain heavy static load (2400 Pa & 5400 Pa or 550 kg/m2)
- Material : Heavy Duty Silver Anodized Aluminum Frame & Tempered Glass.
- Dimension (L x W x H) : (1480 x 665 x 30m) (± 10mm)
- Material : Aluminum frame and tempered glass
Electrical Characteristics at STC :
- Maximum Power Pmax : 185 Wp
- Maximum Voltage Vmpp : 20.34 V
- Maximum Current Impp : 9.10 A
- Open Circuit Voltage Voc : 24.08 V
- Short Circuit Current Isc :9.64 A
- Module Efficiency : 18.50 %
Electrical Characteristics at NOCT :
- Maximum Power Pmax : 133.50 Wp
- Maximum Voltage Vmpp : 17.74 V
- Maximum Current Impp : 7.53 A
- Open Circuit Voltage Voc : 21.10 V
- Short Circuit Current Isc : 8.10 A
Temperature coefficient (Tc) and permissible operating conditions
- Tc of Open Circuit Voltage (α) : ‐0.300%/°K
- Tc of Short Circuit Current (β) : 0.060%/°K
- Tc of Power (γ) : ‐0.370%/°K
- NOCT : 46 ± 2°C
- Maximum series fuse ratings : 15A
- Temperature Range : ‐‐40°C to +85°C
- Maximum System Voltage : 1000 V DC
Applications
:It has various applications such as :
- On-grid Large scale utility projects
- On-grid rooftop Industrial & commercial system,
- Off-grid rooftop systems for residential buildings.
- Solar water pumping systems ,
- Off-grid systems for Filling Stations.
- Electric Vehicles charging station ,
- Street lighting applications.
