Brand: Generic (Imported)

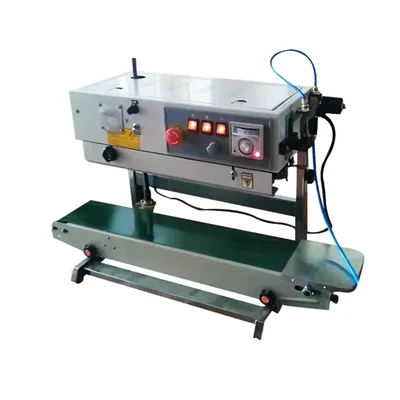

Heavy Duty MS Vertical Continuous Band Sealer with Nitrogen Flush
SKU: SD-SP-20233628
9 people have bought this recently
Delivery By: Dec 21 - Dec 23
MRP : ₹25999 ₹22399
14% OFF!
9 people have bought this recently Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹22399 (Including GST)
MRP : ₹25999
14% OFF!
Get Extra ₹336 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Vertical Continuous Band Sealer with Nitrogen Flush, 500W
Sealing width 6-12 mm
Max conveyor loading capacity 3 Kg
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 17 kg
- Power Source : Electric
- Voltage : 220V
- Frequency : 50 Hz
- Power : 500 W
- Material : Mild Steel
- Sealing Speed : 0-12 m/min
- Sealing Width : 6-12 mm
- Temperature Range : 0-3000C
- Max Transport Weight : 3 Kg
- Package Material : High Graded Pouches, such as laminated Pouches.
NOTE : Conveyor color and Panel may vary
Description
This vertical continuous band sealer with nitrogen flush is a packaging machine designed for sealing high graded pouches in a vertical position. This nitrogen flushing mechanism helps the food stay fresh for a longer time. This type of sealer is commonly used in industries where the preservation of product freshness and the prevention of oxidative reactions are crucial, such as in the packaging of food products, pharmaceuticals, and other sensitive materials. It has a maximum transport weight of 3 kg and 0–12 m/min sealing speed, which saves labor effort. This machine may increase packaging despite excessive production.
Features
:- Easy to operate.
- Premium quality heavy duty machine.
- Fast packing machine.
- Time saver.
- Different types of high graded pouches can be sealed.
- Nitrogen flushing system
Applications
:- Food Packaging : One of the primary applications of the MS Vertical Band Sealer is in the food industry. It is particularly effective for packaging perishable items such as seafood, meats, snacks, and other food products.
- Chemical Products : In addition to food, this sealer is also used for packaging chemical products. Many chemicals are sensitive to air exposure and moisture; therefore, using a nitrogen flush during sealing prevents contamination and degradation of these substances.
- Daily Use Products : The MS Vertical Band Sealer finds applications in packaging everyday consumer goods such as toiletries, cleaning supplies, and personal care items.
- Electronics Packaging : For electronic components and devices, moisture control is critical to prevent damage during shipping and storage.
Usage
:- Preparation of Equipment : Ensure that the MS Vertical Band Sealer is properly set up and connected to a nitrogen gas supply. Check all connections for leaks.
- Adjusting Settings : Set the temperature and sealing time on the control panel according to the material being sealed.
- Nitrogen Flush Setup : Connect the nitrogen flush system to the sealer. This typically involves attaching a nitrogen gas line to the designated inlet on the sealer. Adjust the nitrogen flow rate as recommended.
- Loading Packages : Place your product in the packaging material and position it correctly at the entrance of the sealer. Ensure that there are no obstructions and that the film is aligned properly for an effective seal.
- Initiating Sealing Process : Start the sealing process by activating the machine. The vertical band sealer will pull the package through, applying heat and pressure while simultaneously flushing with nitrogen.
- Post-Sealing Inspection : Once sealed, inspect packages for proper seals and check if they are free from air pockets.
Maintenance :
- Check Temperature and Pressure Settings : Ensure they are within the recommended range.
- Inspect Sealing Jaws : Look for any damage or wear and tear.
- Clean Sealing Jaws : Use a soft cloth and a non-abrasive cleaning solution.
- Clear Debris : Remove any packaging material from the machine to prevent jams.
