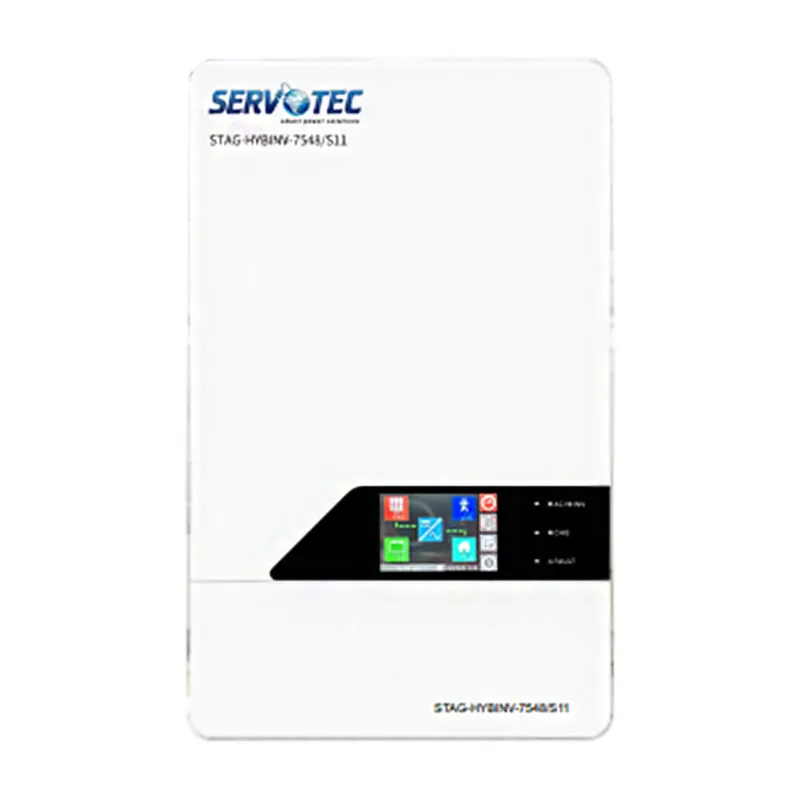

SERVOTECH 5KVA Amalgam Series Hybrid On Grid & Off Grid Solar Inverter For Home & Office With 2 Year of Warranty

Brand : Servotech

SKU : TI-S5-37766

MRP :

₹60999

Get Extra ₹915 OFF on Prepaid Orders

Delivery By: Jun 27 - Jun 29

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Servotech Amalgam Inverter

Hybrid Inverter

2 Years Of Warranty Only Available on Technical Faults

Country of origin: India

Specification

Brand: Servotech
Weight (Approx.) : 9 kg

Power : 5000VA

AC INPUT

AC Voltage : 220/230/240VAC
Voltage Range : 170-280VAC（For Personal Computers；） 90-280 VAC（For Home Appliances）
Frequency Range : 50/60H（z Auto sensing）

AC OUTPUT

Surge Power : 8000VA
Voltage Regulation (Battery Mode) : 220VAC/230VAC/240VAC ± 5%
Rated Frequency : 50/60Hz
Efficiency (Peak) : 93%
Transfer Time : 10ms（For Personal Computers), 20m（s For Home Appliances)

BATTERY

Battery Voltage : 48VDC
Floating Charge Voltage : 54VDC
Overcharge Protection : 63VDC
Battery Type : Lithium/Lead-acid

SOLAR CHARGER & AC CHARGER

Maximum PV Array Open Circuit Voltage : 500VDC
Maximum PV Array Power : 5000W
MPPT Voltage Range(V) : 90~450VDC
Maximum Input Current : 27A
MPPT Tracker/Strings : 1
Maximum Solar Charge Current : 80A
Maximum AC Charge Current : 60A
Maximum Charge Current : 80A

PROTECTION & FEATURE

AC Overcurrent : Yes
AC Overvoltage : Yes
Over Temperature Protection : Yes
Smart Load Management : Yes
On Grid : Yes
Parallel Function : Yes, 6 Units

GENERAL PARAMETERS

Operation Temperature : -10°C ~ 50°C
Relative Humidity : 5% ~ 95% (Non-condensing)
Altitude : (>2000m Derating)
Dimensions (D x W x H) : 31.5 x 13.4 x 51.6 cm

DISPLAY AND COMMUNICATION

Display : Touch screen
Interface : Standard : RS232, CAN & RS485, Optional : Wi-Fi, Bluetooth, CT
Safety Standard : EN/IEC 62109-1,EN/IEC 62109-2

Description

The Servotech 5KVA Amalgam Series Hybrid Solar Inverter is a versatile and high-performance energy solution designed for home and office applications. It supports both on-grid and off-grid functionality, ensuring seamless power backup. Featuring MPPT technology, it optimizes solar energy conversion for maximum efficiency. With a 2-year warranty, this inverter offers reliable and sustainable energy management.

Features

5KVA Capacity – Provides robust power backup for various applications.
Hybrid Functionality – Supports both on-grid and off-grid operations.
MPPT Technology – Maximizes solar energy utilization for improved performance.
Pure Sine Wave Output – Ensures stable and smooth power for sensitive appliances.
Advanced Protection – Includes overload, short circuit, and overcharge safeguards.
Energy-Efficient Operation – Reduces electricity consumption and enhances battery life.
Smart LCD Display – Allows easy monitoring of system performance.
Compact & Durable Design – Ensures long-term reliability and easy installation.
