Brand: Generic (Imported)

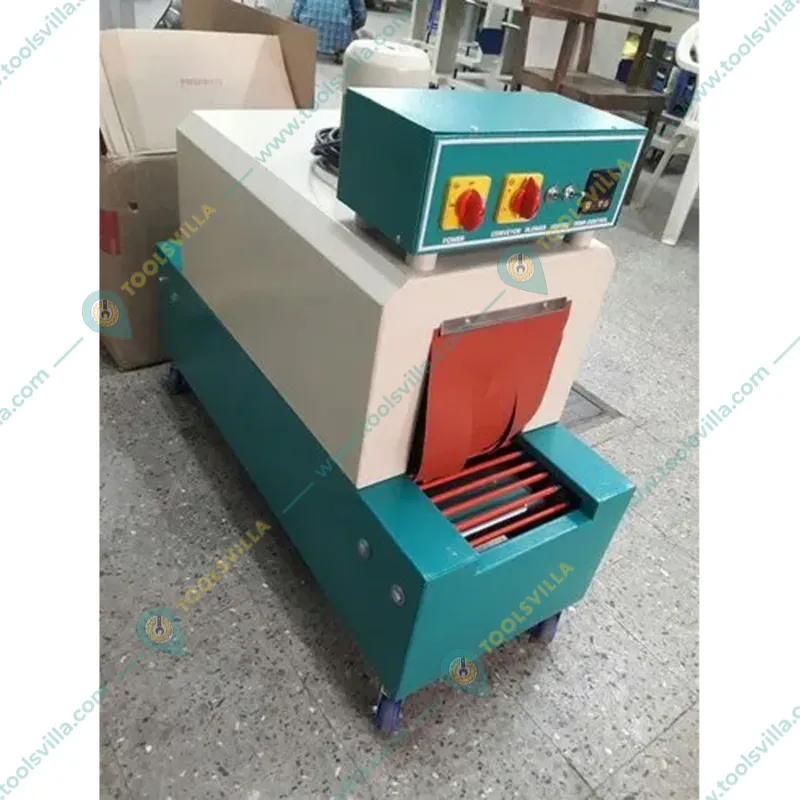

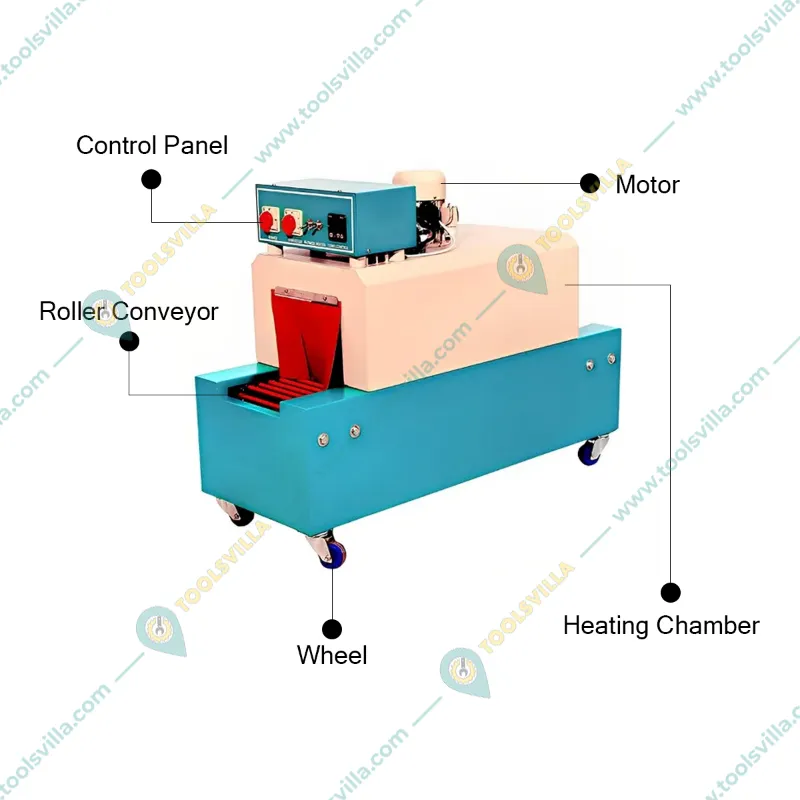

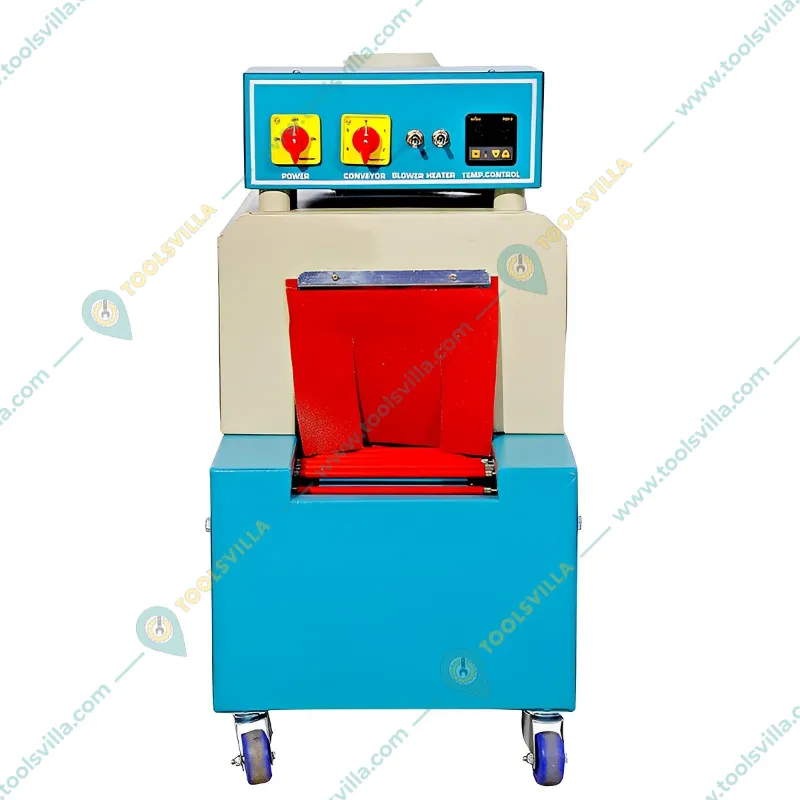

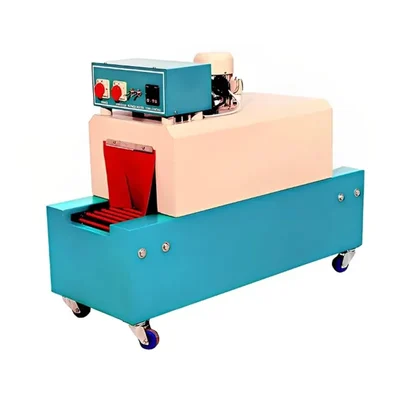

Shrink Tunnel Machine, Power Consumption 2.4kW
SKU: SH-SP-20232721
2373 people have viewed this recently
Delivery By: Jun 25 - Jun 27
MRP : ₹33339
2373 people have viewed this recently Delivery By: Jun 25 - Jun 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹33339 (Including GST)
Get Extra ₹500 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Shrink Tunnel Machine, Power Consumption
5 No. of Heaters
Power Consumption 2.4 kW
Country of origin: India
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 30 kg
- Voltage : 220 V
- Frequency : 50 Hz
- Power Consumption : 2.4 kW
- Conveyor Loading : 5 Kg
- Heating Furnace : 90X45X25 mm
- Speed : 0-8 M/Min
- No. of Heaters : 5
- Packing Size : 20X12 cm
- Dimension (LXWXH) : 70X44X41 cm
- Weight : 30 Kg (Approx)
Description
This shrink tunnel machine is a specialized piece of packing equipment that uses heat to shrink film that has been loosely wrapped around items. The major function of this equipment is to create a tight fit of shrink film around the item, ensuring that it is properly packaged.
Features
:- EASY OPERATION : Shrink tunnel machines are designed with a simple working mechanism that requires minimal operator training. This feature ensures that even personnel with limited experience can efficiently operate the machine.
- FAST WARM UP : These machines heat up quickly once turned on, allowing for minimal downtime and increased productivity in packaging operations.
- ADJUSTABLE TEMPERATURE : These machines allow users to adapt the temperature settings based on different types and thicknesses of shrink film.
- OPTIMIZED OPERATIONS : By reducing packaging times and minimizing operator errors, shrink tunnels enhance overall operational efficiency in packaging processes.
Usage
:1. Setup the Machine :
- Place the thermal shrink packaging machine on a stable, flat surface.
- Ensure that the machine is connected to a power source.
2. Prepare the Product :
- Place the product you want to package into a suitable shrink film bag.
- Make sure the bag is large enough to accommodate the product with some extra space for sealing.
3. Adjust Settings :
- Turn on the machine and adjust the temperature settings according to the type of shrink film being used.
4. Load Products :
- Place the prepared product with the shrink film bag onto the machine’s conveyor for sealing.
- Ensure that products are spaced adequately to allow for proper sealing and shrinking.
5. Start Operation :
- Activate the machine by pressing the start button.
- Once sealed, products will move through the heating chamber where hot air will cause the film to shrink tightly around each item.
6. Collect Finished Products :
- Once packaged, collect your finished products from the output area of the machine.
Maintenance :
- Inspect the machine daily for any signs of wear or damage.
- Monitor the shrink tunnel temperature to avoid overheating, which can cause burn holes in the film.
Applications
:- Product Packaging : They are widely used for packaging bottles, cans, and other containers where a tight seal is required.
- Labeling : Shrink tunnels can be utilized to apply shrink sleeves or labels that conform tightly to the shape of the product.
- Food Industry : In food packaging, shrink tunnels help preserve freshness by sealing products in airtight packaging.
- Cosmetics and Pharmaceuticals : They are also employed in the cosmetics and pharmaceutical industries for tamper-evident seals.
