Brand : GRAMSTRONG

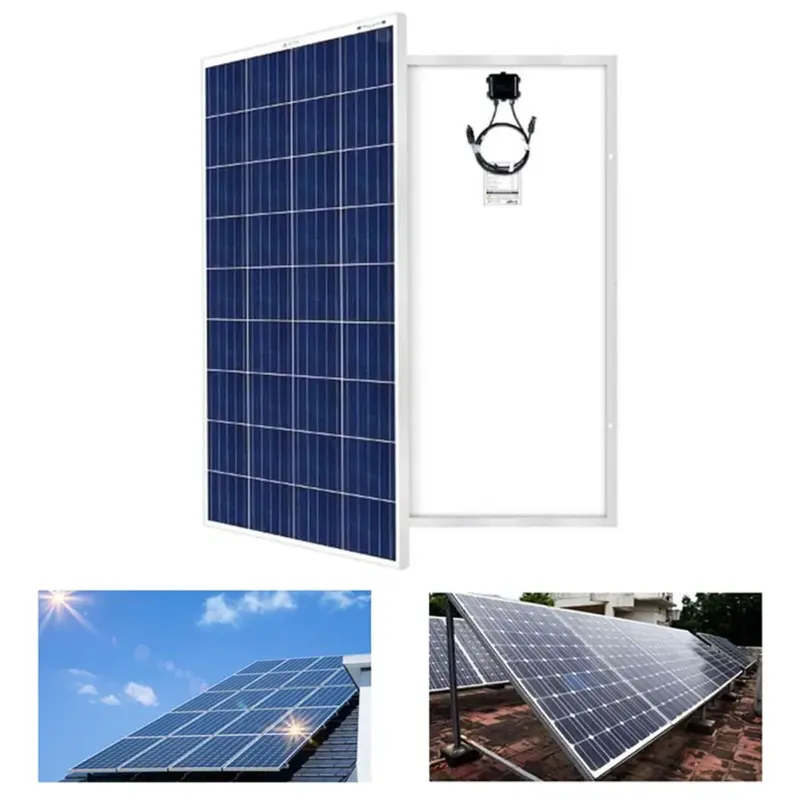

Gramstrong 150 W Polycrystalline Solar Panel Home , Commercial and Industrial Usage
SKU : TI-G1-34814
MRP : ₹7000
₹4950
29% OFF!
-
1
+
2633 people have viewed this recently
Get Extra ₹74 OFF on Prepaid Orders
Delivery By: Jun 4 - Jun 6
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
150 W 24 V Polycrystalline Solar Panel,
Junctions Box with IP 67 rated with 2 bypass diodes
Excellent Low Light Performance.
Long Durable and High Performance Solar Panel.
Country of origin: China
Description
150 W Polycrystalline solar cells can help you generate up to 150 W of electricity on a single charge. Why pay for electricity when you can generate it! This panel is very easy to install and is not at all heavy. This panel can be dismantled and reinstalled at any other location very easily! It Built with Heavy-duty silver anodized aluminum frame and AR coated tempered PV grade glass . Higher area efficiency Reduced BOS cost and Excellent low light performance .These efficient solar panels offer with reduced electricity bills, maximized power generation, better performance in hot climates, low maintenance cost, high durability and diverse applications.

Features

 :
  • Increased module power output.
  • Maximum system voltage of 1000 V DC.
  • Reduced BOS cost.
  • High area efficiency.
  • Easy installation & handling for various application.

Specification

 :
  • Product Type: Solar Panel
  • Brand: GRAMSTRONG
  • Weight (Approx.) : 10.5 kg
  • Wattage : 150 W
  • Number of Cell : 36
  • Frame Material : Aluminum
  • Junction Box : IP 67 rated with 2 bypass diodes
  • Cell Encapsulant : PID Free EVA (Ethylene Vinyl Acetate) ‐ FC/UFC
  • Back sheet : Composite Film - White ( Black & Transparent Optional )
  • Frame : Silver Anodized Aluminum frame with twin wall profile
  • Mechanical Load Test : Sustain heavy static load (2400 Pa & 5400 Pa or 550 kg/m2)
  • Dimension (L x W x H) : 1480 x 665 x 30 mm(± 10mm)
Technical Data :

Electrical Characteristics at STC :
  • Operating Voltage : 12 V
  • Maximum Power Pmax : 150 Wp
  • Maximum Voltage Vmpp : 17.98 V
  • Maximum Current Impp : 8.32 A
  • Open Circuit Voltage Voc : 21.18 V
  • Short Circuit Current Isc : 8.84 A
  • Module Efficiency : 15 %

Electrical Characteristics at NOCT:
  • Maximum Power Pmax : 108.00 Wp
  • Maximum Voltage Vmpp : 16.20 V
  • Maximum Current Impp : 6.70 A
  • Open Circuit Voltage Voc : 20.20 V
  • Short Circuit Current Isc  : 6.90 A

Temperature coefficient (Tc) and permissible operating conditions :
  • Tc of Open Circuit Voltage (α) : ‐0.310%/°K
  • Tc of Short Circuit Current (β) : 0.050%/°K
  • Tc of Power (γ) : ‐0.410%/°K
  • NOCT : 46 ± 2°C
  • Maximum series fuse ratings : 15 A
  • Temperature Range : ‐40°C to +85°C
  • Maximum System Voltage : 1000 V DC


Applications

 :
  • On-grid Large scale utility projects,
  • On-grid rooftop Industrial & commercial system,
  • Off-grid rooftop systems for residential buildings.
  • Solar water pumping systems ,
  • Off-grid systems for Filling Stations.
  • Electric Vehicles charging station ,
  • Street lighting applications.
